Making Magic with Keras and Shiny

# Making Magic with Keras and Shiny
## An exploration of Shiny’s position in the data science pipeline
### Nick Strayer
### 2018/01/22

---

body {
  font-family: 'Montserrat', sans-serif;
}
h1 {
  font-family: 'Lato', sans-serif;
}
</style>

# Me

.pull-left[
- [@NicholasStrayer](https://twitter.com/NicholasStrayer)
- [nickstrayer.me](http://nickstrayer.me/)
- [LiveFreeOrDichotomize](http://livefreeordichotomize.com/)
]
.pull-right[
- PhD Candidate in Biostatistics at Vanderbilt University
- Previously:
  - Johns Hopkins Data Science Lab
  - New York Times graphics department
  - Data visualization "engineer"
]

# Slides

# Outline

Three sections

1. What...
2. Why...
3. How...

... I did

---
class: center, middle

# What?

---
class: middle
# Shiny app for casting spells

.center[
<img src = "http://digitalspyuk.cdnds.net/16/46/480x198/gallery-1479227655-tumblr-inline-n9laetes451qh7ojh.gif"/> <a href = "http://digitalspyuk.cdnds.net/16/46/480x198/gallery-1479227655-tumblr-inline-n9laetes451qh7ojh.gif">source</a>
]

> Any sufficiently advanced technology is indistinguishable from magic.

- Arthur C. Clark

---
class: center, middle
# Demo

_In which the rest of the talk is invalidated..._

---
class: middle
# Three main steps:

1. Shiny app for gathering data
2. Modeling data with Keras
3. Shiny app for presenting data

---
class: center, middle

# Why?

---
class: middle

I want to show Shiny can fit into the datascience workflow from the begining to the end.

Traditionally shiny has been used to show off results afterwards, but that's missing a huge portion of its potential.

---

# Shiny for gathering data

Who is better at knowing what they want their data to look like more than the ones who are going to be using it?

.center[
<img src = "http://www.michaelbunker.com/wp-content/uploads/sites/9/2015/06/wheat8.jpg"/ height = 250>
<a href = "http://www.michaelbunker.com"/><span size = 8>source</span></a>
]

Many people like statisticians are given entire courses on how to set up things like clinical trials, but datascience often assumes the data has magically appeared.

---

# Shiny for presenting models

This is the traditional way shiny is used, and there's a reason for that: it's great.

Instead of having to get fancy with learning how to port tensorflow models to Swift or Java you can just throw a predict function inside of a simple app.

_How well can this scale?_

---
class: center, middle

# How?

---
class: middle

We need to...

- Gather data from accelerometer.
- Visualize results so that I could make sure I wasn't recording bad data.
- Save data somewhere I could use it.

]
.pull-right[
<img src = 'gathering.png' height = 550/>
]

---
class: middle

# Shiny

> Shiny is an R package that makes it easy to build interactive web apps straight from R.

]
.pull-right[

]

[RStudio](https://shiny.rstudio.com/)
---
class: middle
#Gathering data from accelerometer

Used my package `shinysense`.

Contains functions to bring data into Shiny apps.

One of these data sources happens to be accelerometer data.
---
# Movr

```r
shinymovrUI("movr_button")
```
]
.pull-right[
__server.R__

```r
movement <- callModule(
  shinymovr,
  "movr_button")
```
]

Binds to the `devicemotion` api in javascript to pull in motion data.

```js
window.addEventListener("deviceorientation", handleMovementFunc);
```

---
# Visualizing data

Not that hard as `shinysense::movr` returns an observable that can be used like any other shiny object.

```r
movement() %>%
  ggplot(aes(
    x = time,
    y = accel
  )) +
  geom_line(aes(
    color = direction
  )) + ...
```

]

Added a delete button if bad data was detected.

---
class: middle
# Saving the data

Two options:
1. Use shinyapps.io and do a dropbox or similar upload
2. Just host the app from my own server
    - This was easier.
    - Better for other reasons I will get to later as well.

Luckily the RStudio Server makes this crazy easy.

```r
write_csv(rvs$movements, paste0(sessionId, '_movement.csv'))
```

---

# Data exploration/ visualization

---
# Getting data all in

By saving all of the data to the home repo as unique id'd `.csv`s all I have to do is read them in with a single `purrr` line.

```r
# get the files in our directory
all_files <- list.files('gather_data')

# just get the csvs
csv_names <- all_files[grepl('.csv', all_files)]

# load all data into a dataframe
data <- csv_names %>%
  map_df(read_csv)
```

By far the best thing about this whole project.

---

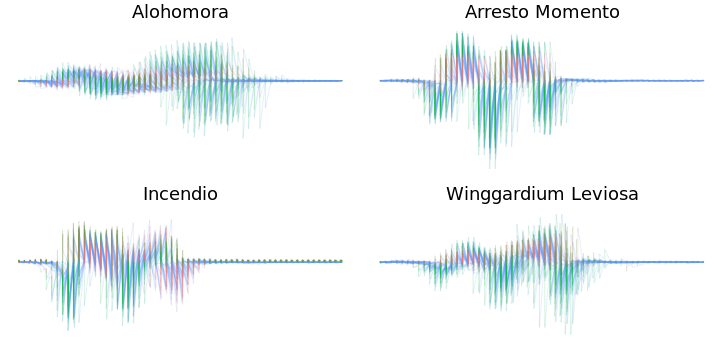

# Visualizing all data for trends

```r
ggplot(data, aes(x = time, y = accel, group = recording_id)) +
  geom_line(aes(color = direction), alpha = 0.15) +
  facet_wrap(~label) +
  theme_void() + guides(color = FALSE) +
  theme(strip.text = element_text(family = "Amatic SC", size = 18))
```

![](index_files/figure-html/unnamed-chunk-8-1.png)

---
class: center, middle

# Modeling

---

# Converting data to tensors

We (R users) like to think flat and tidy, tensors do not.
]
.pull-right[
<img style="margin-top:-55px" src = 'http://www.sunlab.org/teaching/cse6250/fall2017/lab/image/DL/tensor.png' height = 220/>
]

```r
directions <- c('m_x','m_y','m_z')
wide_data <- data %>%
  # take data and make it wide. Et tu brutus?
  spread(direction, accel) %>%
  # group into each individual spell cast
  group_by(label, recording_id) %>%
  # convert each grouping into a list with a matrix inside.
  do( data = as.matrix(.[directions]) )
```

One-hot encoding is even more messy at this point.

---
class: middle
# Building Keras model

<p style='padding-bottom: 25px;'>
When building a deep learning model you need to ask yourself three things
</p>

.pull-left[
1. What architecture fits my problem/limitations best?
2. How do I stack my layers?
3. Couldn't KNN do this better?
]
.pull-right[
<img src = "https://s3.amazonaws.com/keras.io/img/keras-logo-2018-large-1200.png"/>
]

---

# Architecture

Reccurent is fantastic for learning time dependent patterns but are slow.

Convolutional is great at recognizing patterns and are fast, but bad at time dependent patterns.

Since I don't have a ton of compute and accelerometer data is often pattern recognized I chose a CNN.
]
.pull-right[
<img style='margin-top: -95px' src = "modelShape.svg" height = 550 />
]

---
# R's Keras vs Python's

This is where R shines in deep learning.

The pipe operator turns the sequential API into a much more readable format than in python.

```r
model <- keras_model_sequential()
model %>%
  layer_conv_1d(...) %>%
  layer_batch_normalization() %>%
  layer_global_max_pooling_1d() %>%
  layer_dropout(0.4) %>%
  layer_dense(
    num_classes,
    activation = 'softmax'
  )
```
]
.pull-right[
__Python__

```python
model = Sequential()
model.add(conv_1d(...))
model.add(batch_normalization)
model.add(global_max_pooling_1d)
model.add(dropout(0.4))
model.add(dense(
  num_classes,
  activation = 'softmax'
))
```
]

---
# Saving model for future use

You can dump the keras model as its own file to be loaded up and instantly used later.

```r
model %>%
  save_model_hdf5('model.h5')
```
]

]
.pull-right[
__Later__
.small_code[

```r
model <- load_model_hdf5('model.h5')
```
]
]

.center[
<img src = "https://upload.wikimedia.org/wikipedia/commons/thumb/b/b2/Now-and-Laters.jpg/1200px-Now-and-Laters.jpg" width = 25%/>
]

While you technically could do this with any model using `saveRds`, it's nice to have it be a first-class citizen.

---

# Final Shiny app

---
# Wire in Keras

You simply have to plop it in like any other package.

```r
library(keras)
```

Make sure to turn off GPU mode! You don't need the speed.

```r
use_session_with_seed(
  42,
  disable_gpu = TRUE,
  disable_parallel_cpu = FALSE
)
```

If running on a server that you use to train this can cause fun crashes due to memory access permissions.

---
class: middle
# Testing it

_Need to test the app on a phone, but how to do that?_

]
.pull-right[
__Solution:__

_Use ShinyServer hosted on your own computer! _

]

<div style = 'padding-top: 70px'> </div>
By hosting your own server this process is way faster.

Simply save your app's files and refresh your page and it's updated!

Massively speeds up the iteration process.

---
# Making it look pretty

_The most important part_

It's very easy to add some CSS to your app.

```r
tags$style(HTML("
@import url('//fonts.googleapis.com/css?family=Amatic+SC|Josefin+Slab');
h2, h3, button {
  font-family: 'Amatic SC', cursive;
}
h2 {
  font-size: 50px;
}
p {
  font-family: 'Josefin Slab', cursive;
  font-size: 18px;
}
button {
  font-size: 28px;
}"))
```

---
.pull-left[
__Before__
  <img src = 'ugly_final.png' width = 300px/>
]
.pull-right[
__After__
  <img src = 'pretty_final.png' width = 300px/>
]
---
class:middle
# Deploying it

Do we want to kill our server?

Leave it on personal server.
]
.pull-right[
__No__

Send it to shinyapps.io
]

<div style='text-align: center; padding-top: 65px'>
<a href = 'https://jhubiostatistics.shinyapps.io/cast_spells/'>
jhubiostatistics.shinyapps.io/cast_spells/
</a>
</div>
---
# Thanks To

- [Johns Hopkins Data Science Lab](http://jhudatascience.org/)
  - Support in developing `shinysense` and all the hosting time
- [Lynn Bender](https://www.linkedin.com/in/lynnbender/)
  - For organizing this conference
- [RStudio](https://www.rstudio.com/)
  - For all the amazing packages that they put out.

[github repo](https://github.com/nstrayer/spell_casts)
