Stochastic Block Models with R

![:centerPic](figs/title_slide.png)

---

# Layout

- What am I selling?
- The Why
- The Process
- The Product

---
# About Me

## Career
- Previously:
  - Software Engineering w/ Javascript
  - Worked for NY Times Graphics Department
- Now:
  - PhD. Candidate, Vanderbilt Biostatistics
  - Focusing on Visualization and Unsupervized learning
- Future:
  - Looking for Data Science positions for post graduation
]

.pull-right[
## Links
- Blog at [LiveFreeOrDichotomize.com](https://livefreeordichotomize.com/)
- Tweet at [@nicholasStrayer](https://twitter.com/NicholasStrayer)
- Code at [github.com/nstrayer](https://github.com/nstrayer)

]

---
class: middle

## What am I selling?

`sbmR`: an R package to perform uncertainty-aware unsupervised clustering of graph data.
]
.pull-right[
### An Idea

Building an R package alongside a research project serves to strengthen both the package and the research.
]

---

class:middle

# The Why

---

# But first... Jargon Break!

---

# Bi or Poly-partite networks

> Networks that have nodes of multiple distinct types where connections can't form between nodes of the same type.

![:centerPic 60](figs/bipartite_network.svg)

---

# The __S__tochastic __B__lock __M__odel?

A network model to cluster nodes into "blocks".

![:centerPic 62](figs/sbm_explained.svg)

---

# An equation for validity

<div style="margin-top:-75px;">
![:centerPic 85](figs/sbm_formula.svg)
</div>

---

# Really why I showed an equation

![:centerPic 32](figs/poisson_tattoo.png)

---
class: middle

# Why SBMs

- Questions arise like "who are these people similar to and why?"

- Tried Deep Learning
  - Lack of interpretability
  - Needed specialization for bipartite networks

- Needed method that acknowledges the limitations of the data.
]
.pull-right[
![:centerPic 100](figs/why_block_models.png)
]

---
class: middle

# Why write a package?

.pull-left[
Graph-Tool in Python fits SBMs but...
- Lab uses R
- We're focused on uncertainty
- Needed to tweak underlying methods for bipartite networks etc.
- Wanted to present at RStudio::conf

]
.pull-right[
.center[.iconed[📦]]
]

---
class: middle

# The Process

---
class: middle

# Getting to the starting line

- iGraph is a monolith
    - Adding computationally heavy steps in R brought it to a halt

- [Jim Hester's it_depends talk](https://resources.rstudio.com/rstudio-conf-2019/it-depends-a-dialog-about-dependencies)


  ![:centerPic 75](figs/igraph_logo.png)
]

.pull-right[
  __Deciding to use Rcpp__

- Low-level interface allowed stripping away of non-essentials for graph manipulation.
  - Wanted an excuse to write in a typed and compiled language.

![:space 5]

![:centerPic 35](figs/rcpp_hex.png)
]

---
class: middle

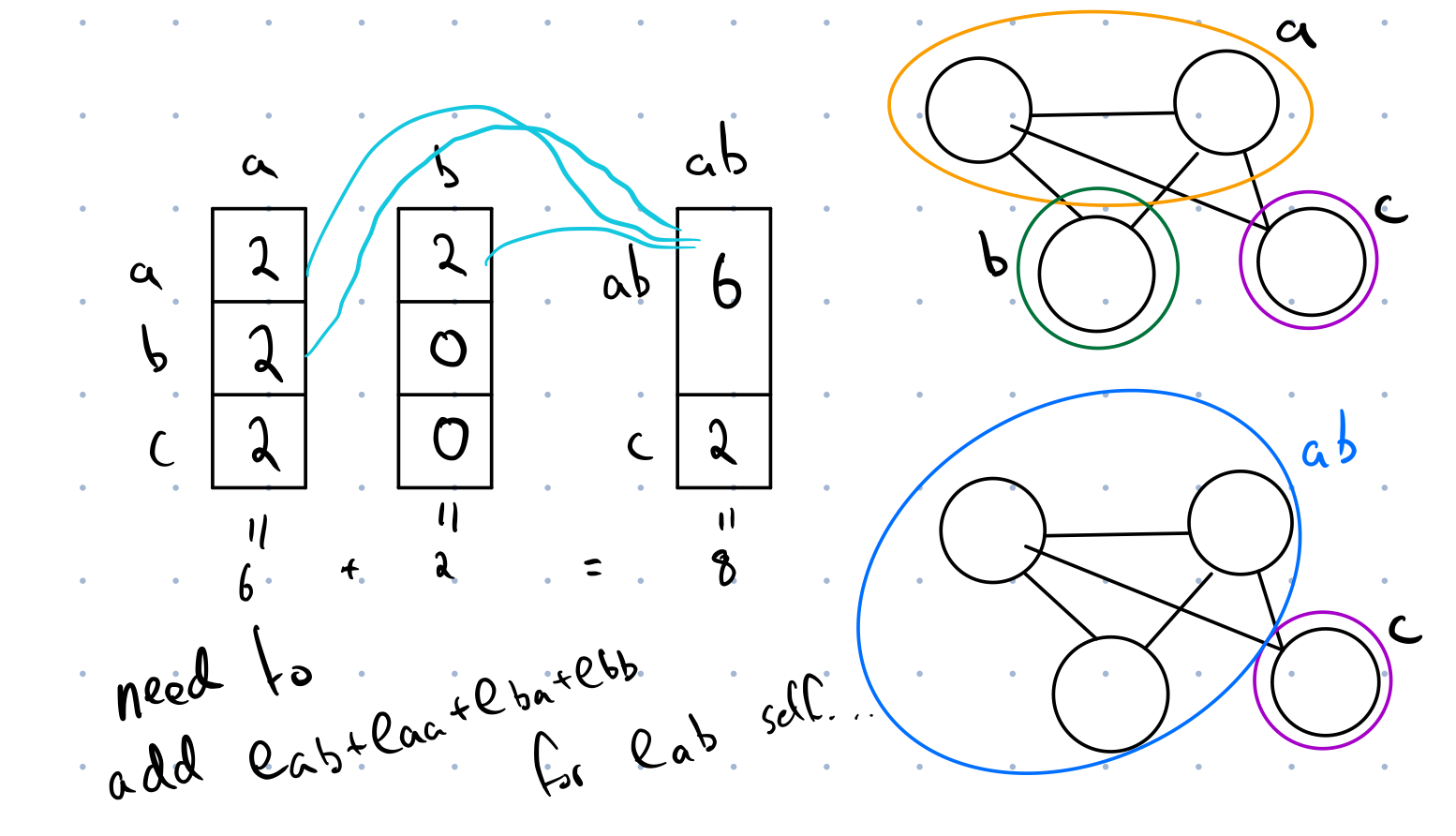

# Tests and simulated data catch errors

- Toy examples to test basic functions
- Builds strong foundations for larger models
- Solidifies intuition about behavior

![:space 5]

![:centerPic 100](figs/small_networks.png)
]

.pull-right[

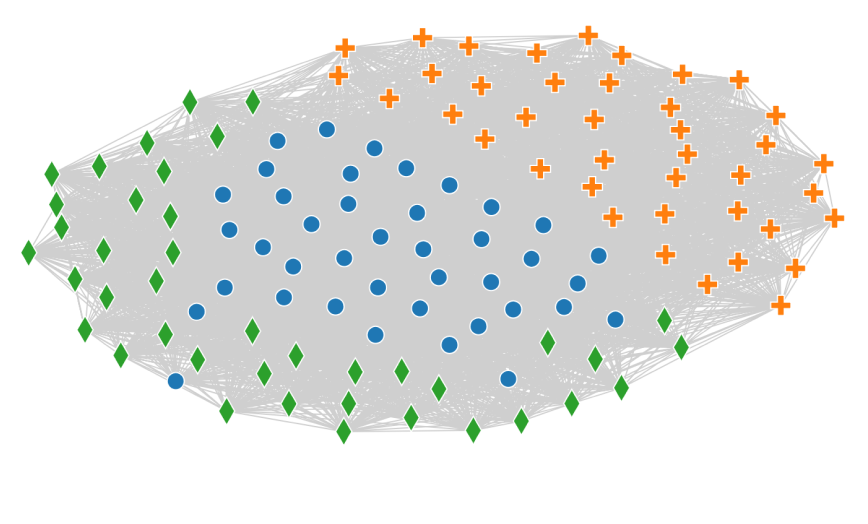

__Statistics `$\to$` Simulated Data__
- Stochastic data _will_ find your edge cases
- Gives an idea of real-world performance

![:space 7]

![:centerPic 100](figs/clustered_network.png)

]

---
class: middle

# Getting speedy with it

.pull-left[
.bullet_emoji[🛠] Reworking for efficiency leads to better understanding
]
.pull-right[
.bullet_emoji[🧐] Question the purpose of every operation, they are expensive
]

---

# Documentation as tests

![:spacePx 50]

__Constantly updating documentation...__

![:spacePx 40]

![:spacePx 50]

---

# Vignette or perish

![:spacePx 60]

__Learning resources__

.bullet_emoji[🥀] If no-one knows __how__ to use your package/method no-one __will__ use it.
![:spacePx 80]

__Covertly writing__

]

---

# The Product

---

# What exactly is `sbmR`?

![:spacePx 90]

- Native R package (kinda)

- Fits SBMs

- Investigates uncertainty of found structure by sampling from bayesian posterior

- Provides (a growing list of) visualizations to communicate results

![:spacePx 30]

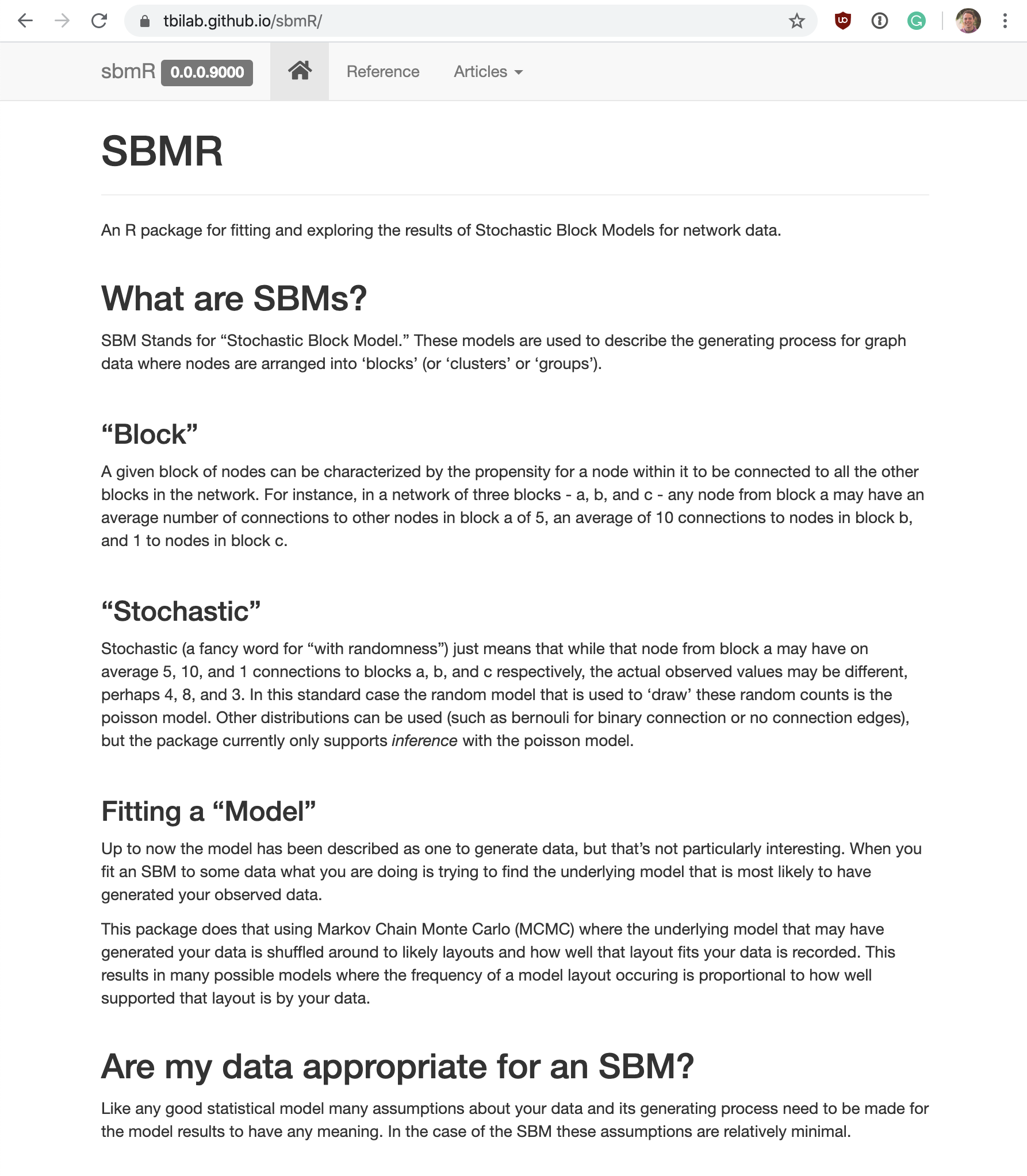

### [tbilab.github.io/sbmR/](https://tbilab.github.io/sbmR/)

]

---
class: middle

# What is needed to use it?

.bullet_emoji[✔️] Data that can be represented as nodes and edges between those nodes
- Patients with diagnoses
- Genomes with mutations
- Social relationships
- ...

.bullet_emoji[🚫] Does not (yet) support non-discrete edges
- Correlations between variables
- Distances between cities
- ...
]

### __Mentality__

![:spacePx 90]

]

---
class: middle

# A quick demo

---

## Simulate a network

Let's simulate a dense network with three blocks and 40 nodes per block.

```r
library(magrittr)
library(tidyverse)
library(sbmR)

k <- 3
n_k <- 40

network <- sim_basic_block_network(
  n_blocks = k,
  n_nodes_per_block = n_k
)

visualize_network(network)
```
]

.right-plot[
<div id="htmlwidget-e3a9219966f93d38cb48" style="width:100%;height:288px;" class="r2d3 html-widget"></div>
<script type="application/json" data-for="htmlwidget-e3a9219966f93d38cb48">{"x":{"data":{"nodes":{"id":["g1_1","g1_2","g1_3","g1_4","g1_5","g1_6","g1_7","g1_8","g1_9","g1_10","g1_11","g1_12","g1_13","g1_14","g1_15","g1_16","g1_17","g1_18","g1_19","g1_20","g1_21","g1_22","g1_23","g1_24","g1_25","g1_26","g1_27","g1_28","g1_29","g1_30","g1_31","g1_32","g1_33","g1_34","g1_35","g1_36","g1_37","g1_38","g1_39","g1_40","g2_1","g2_2","g2_3","g2_4","g2_5","g2_6","g2_7","g2_8","g2_9","g2_10","g2_11","g2_12","g2_13","g2_14","g2_15","g2_16","g2_17","g2_18","g2_19","g2_20","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40"],"block":["g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g1","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g2","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3","g3"]},"edges":{"from":["g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_1","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_2","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_3","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_4","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_5","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_6","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_7","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_8","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_9","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_10","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_11","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_12","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_13","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_14","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_15","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_16","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_17","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_18","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_19","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_20","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_21","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_22","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_23","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_24","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_25","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_26","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_27","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_28","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_29","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_31","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_32","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_33","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_34","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_35","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_36","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_37","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_38","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_39","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g1_40","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_2","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_4","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_5","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_6","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_7","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_8","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_9","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_12","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_14","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_16","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_20","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_23","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_24","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_27","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_28","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_30","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_31","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_32","g2_33","g2_33","g2_33","g2_33","g2_33","g2_33","g2_33","g2_33","g2_33","g2_33","g2_33","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_35","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_36","g2_37","g2_37","g2_37","g2_37","g2_37","g2_37","g2_37","g2_37","g2_37","g2_37","g2_37","g2_38","g2_38","g2_38","g2_38","g2_38","g2_38","g2_38","g2_38","g2_38","g2_38","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_39","g2_40","g2_40","g2_40","g2_40","g2_40","g2_40","g2_40","g2_40","g2_40","g2_40","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_5","g3_6","g3_6","g3_6","g3_6","g3_6","g3_6","g3_6","g3_6","g3_6","g3_6","g3_6","g3_6","g3_7","g3_7","g3_7","g3_7","g3_7","g3_7","g3_7","g3_7","g3_7","g3_7","g3_7","g3_7","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_8","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_9","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_27","g3_27","g3_27","g3_27","g3_28","g3_28","g3_28","g3_28","g3_28","g3_29","g3_29","g3_29","g3_29","g3_29","g3_29","g3_30","g3_30","g3_30","g3_31","g3_31","g3_31","g3_31","g3_31","g3_32","g3_32","g3_32","g3_32","g3_33","g3_33","g3_34","g3_35","g3_35","g3_37","g3_38","g3_39"],"to":["g1_4","g1_6","g1_7","g1_11","g1_22","g1_27","g1_29","g1_32","g2_3","g2_4","g2_5","g2_6","g2_7","g2_8","g2_11","g2_12","g2_17","g2_19","g2_22","g2_24","g2_27","g2_28","g2_29","g2_34","g2_37","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_13","g1_26","g2_2","g2_3","g2_4","g2_5","g2_6","g2_7","g2_10","g2_11","g2_12","g2_13","g2_17","g2_22","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_31","g2_32","g2_33","g2_36","g2_37","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_15","g3_16","g3_17","g3_18","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g1_12","g1_17","g1_32","g2_5","g2_6","g2_9","g2_10","g2_13","g2_14","g2_20","g2_21","g2_24","g2_26","g2_27","g2_28","g2_29","g2_33","g2_34","g2_36","g2_37","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_8","g1_20","g1_29","g1_30","g1_39","g2_4","g2_6","g2_10","g2_11","g2_14","g2_15","g2_16","g2_17","g2_19","g2_21","g2_22","g2_23","g2_24","g2_25","g2_27","g2_29","g2_32","g2_33","g2_34","g2_36","g2_38","g2_40","g3_1","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_8","g1_26","g1_39","g2_2","g2_3","g2_5","g2_6","g2_8","g2_10","g2_11","g2_12","g2_15","g2_16","g2_18","g2_19","g2_20","g2_22","g2_23","g2_24","g2_28","g2_30","g2_34","g2_36","g2_37","g2_38","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_12","g3_13","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_37","g3_38","g3_39","g3_40","g1_19","g2_1","g2_2","g2_3","g2_6","g2_7","g2_8","g2_9","g2_10","g2_12","g2_13","g2_15","g2_16","g2_17","g2_18","g2_19","g2_22","g2_24","g2_25","g2_27","g2_29","g2_30","g2_31","g2_32","g2_34","g2_35","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_22","g1_23","g1_24","g1_31","g1_34","g1_39","g2_7","g2_9","g2_10","g2_11","g2_12","g2_15","g2_16","g2_17","g2_18","g2_19","g2_20","g2_21","g2_25","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_35","g2_38","g3_1","g3_2","g3_3","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_30","g3_31","g3_32","g3_33","g3_36","g3_37","g3_39","g1_17","g1_36","g1_38","g1_39","g2_4","g2_7","g2_9","g2_10","g2_12","g2_13","g2_14","g2_16","g2_17","g2_18","g2_19","g2_20","g2_21","g2_22","g2_23","g2_27","g2_28","g2_30","g2_31","g2_34","g2_37","g2_38","g3_1","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_36","g3_37","g3_38","g3_39","g3_40","g1_33","g2_1","g2_6","g2_8","g2_10","g2_11","g2_12","g2_14","g2_17","g2_18","g2_20","g2_21","g2_24","g2_26","g2_28","g2_30","g2_31","g2_32","g2_34","g2_35","g2_37","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_10","g3_11","g3_12","g3_13","g3_14","g3_16","g3_17","g3_18","g3_19","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_38","g3_39","g3_40","g1_31","g1_34","g1_39","g2_1","g2_2","g2_4","g2_5","g2_6","g2_8","g2_10","g2_11","g2_13","g2_14","g2_16","g2_17","g2_19","g2_20","g2_22","g2_23","g2_24","g2_26","g2_27","g2_28","g2_30","g2_31","g2_34","g2_35","g2_37","g2_38","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_7","g3_9","g3_10","g3_12","g3_13","g3_14","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_25","g3_26","g3_27","g3_28","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_26","g1_28","g1_38","g2_3","g2_4","g2_7","g2_8","g2_9","g2_10","g2_11","g2_13","g2_14","g2_15","g2_16","g2_18","g2_19","g2_20","g2_23","g2_24","g2_26","g2_28","g2_30","g2_31","g2_33","g2_34","g2_35","g2_37","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_23","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_1","g2_2","g2_3","g2_6","g2_7","g2_8","g2_9","g2_10","g2_12","g2_18","g2_19","g2_20","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_30","g2_31","g2_33","g2_34","g2_35","g2_36","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_1","g2_3","g2_9","g2_10","g2_13","g2_15","g2_16","g2_17","g2_18","g2_19","g2_22","g2_23","g2_25","g2_26","g2_27","g2_29","g2_31","g2_34","g2_36","g2_37","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g1_15","g1_29","g1_31","g2_2","g2_4","g2_6","g2_7","g2_8","g2_9","g2_10","g2_11","g2_12","g2_14","g2_15","g2_16","g2_17","g2_19","g2_21","g2_23","g2_26","g2_27","g2_28","g2_29","g2_32","g2_33","g2_35","g2_36","g2_37","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g1_30","g1_36","g1_39","g2_1","g2_2","g2_4","g2_5","g2_7","g2_8","g2_9","g2_15","g2_17","g2_18","g2_21","g2_22","g2_24","g2_25","g2_30","g2_33","g2_36","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_9","g3_10","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g2_1","g2_3","g2_4","g2_5","g2_6","g2_7","g2_9","g2_10","g2_11","g2_13","g2_16","g2_17","g2_19","g2_23","g2_25","g2_26","g2_27","g2_30","g2_32","g2_33","g2_35","g2_38","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_35","g3_36","g3_37","g3_39","g3_40","g1_19","g1_24","g2_2","g2_4","g2_5","g2_7","g2_8","g2_10","g2_11","g2_12","g2_13","g2_15","g2_16","g2_17","g2_19","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_29","g2_30","g2_31","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_15","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_36","g3_37","g3_38","g3_39","g3_40","g1_19","g1_23","g1_30","g1_31","g1_35","g2_1","g2_2","g2_4","g2_6","g2_7","g2_9","g2_11","g2_12","g2_13","g2_18","g2_20","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_30","g2_31","g2_34","g2_37","g2_38","g3_1","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_32","g2_1","g2_2","g2_9","g2_11","g2_13","g2_15","g2_16","g2_17","g2_18","g2_19","g2_22","g2_23","g2_24","g2_26","g2_27","g2_28","g2_30","g2_32","g2_33","g2_35","g2_36","g2_37","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_20","g3_21","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_24","g1_26","g1_27","g1_31","g1_36","g1_38","g2_2","g2_5","g2_6","g2_8","g2_9","g2_10","g2_13","g2_14","g2_15","g2_18","g2_19","g2_20","g2_21","g2_23","g2_24","g2_25","g2_28","g2_32","g2_33","g2_34","g2_36","g2_38","g2_40","g3_1","g3_2","g3_3","g3_5","g3_6","g3_7","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g2_2","g2_3","g2_5","g2_6","g2_7","g2_9","g2_10","g2_11","g2_12","g2_13","g2_16","g2_18","g2_22","g2_23","g2_27","g2_28","g2_29","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_2","g3_3","g3_4","g3_5","g3_6","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_23","g1_24","g1_25","g1_27","g1_28","g1_29","g1_35","g2_1","g2_2","g2_3","g2_4","g2_5","g2_14","g2_15","g2_16","g2_17","g2_18","g2_20","g2_21","g2_23","g2_24","g2_26","g2_27","g2_28","g2_30","g2_31","g2_33","g2_34","g2_35","g2_36","g2_37","g3_1","g3_2","g3_3","g3_4","g3_5","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_24","g1_33","g2_1","g2_2","g2_3","g2_5","g2_6","g2_7","g2_9","g2_10","g2_11","g2_12","g2_15","g2_16","g2_17","g2_18","g2_19","g2_20","g2_21","g2_25","g2_26","g2_30","g2_31","g2_32","g2_33","g2_35","g2_36","g2_37","g2_38","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_35","g3_36","g3_37","g3_38","g3_40","g1_27","g2_1","g2_3","g2_7","g2_8","g2_10","g2_12","g2_15","g2_16","g2_17","g2_18","g2_20","g2_21","g2_23","g2_25","g2_26","g2_30","g2_32","g2_33","g2_34","g2_35","g2_37","g2_38","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_37","g3_38","g3_39","g2_1","g2_2","g2_3","g2_4","g2_8","g2_10","g2_12","g2_15","g2_16","g2_21","g2_22","g2_23","g2_24","g2_25","g2_27","g2_28","g2_30","g2_31","g2_34","g2_35","g2_38","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_11","g3_12","g3_13","g3_14","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g1_33","g2_2","g2_3","g2_4","g2_5","g2_8","g2_9","g2_11","g2_12","g2_13","g2_16","g2_17","g2_18","g2_21","g2_23","g2_25","g2_26","g2_27","g2_29","g2_30","g2_31","g2_33","g2_34","g2_36","g2_37","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_1","g2_2","g2_4","g2_5","g2_9","g2_11","g2_12","g2_14","g2_17","g2_18","g2_20","g2_22","g2_23","g2_24","g2_25","g2_26","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_1","g3_3","g3_4","g3_5","g3_6","g3_7","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_37","g3_38","g3_39","g3_40","g1_37","g2_1","g2_3","g2_4","g2_5","g2_6","g2_7","g2_8","g2_9","g2_12","g2_13","g2_14","g2_17","g2_18","g2_20","g2_22","g2_24","g2_26","g2_27","g2_30","g2_33","g2_36","g2_38","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_17","g3_18","g3_19","g3_20","g3_21","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_32","g3_33","g3_34","g3_36","g3_37","g3_38","g3_39","g3_40","g1_37","g2_1","g2_2","g2_3","g2_4","g2_5","g2_6","g2_7","g2_8","g2_10","g2_11","g2_12","g2_13","g2_15","g2_17","g2_19","g2_20","g2_21","g2_23","g2_24","g2_25","g2_28","g2_29","g2_30","g2_31","g2_34","g2_37","g2_38","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_28","g3_29","g3_30","g3_31","g3_32","g3_35","g3_36","g3_38","g3_39","g3_40","g1_34","g2_2","g2_3","g2_4","g2_6","g2_7","g2_9","g2_10","g2_11","g2_16","g2_17","g2_18","g2_19","g2_21","g2_22","g2_23","g2_27","g2_28","g2_30","g2_32","g2_33","g2_35","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_3","g2_4","g2_5","g2_12","g2_15","g2_17","g2_19","g2_20","g2_21","g2_22","g2_24","g2_25","g2_27","g2_32","g2_35","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_2","g2_3","g2_4","g2_5","g2_6","g2_7","g2_9","g2_11","g2_12","g2_14","g2_16","g2_17","g2_19","g2_20","g2_21","g2_22","g2_24","g2_26","g2_27","g2_29","g2_30","g2_31","g2_32","g2_34","g2_36","g2_37","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_38","g2_2","g2_3","g2_4","g2_5","g2_7","g2_9","g2_10","g2_11","g2_12","g2_13","g2_16","g2_17","g2_18","g2_19","g2_22","g2_23","g2_24","g2_27","g2_29","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_35","g2_2","g2_5","g2_6","g2_7","g2_8","g2_10","g2_13","g2_15","g2_16","g2_19","g2_20","g2_21","g2_22","g2_23","g2_24","g2_27","g2_29","g2_31","g2_32","g2_33","g2_34","g2_37","g2_39","g2_40","g3_2","g3_3","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g1_36","g2_2","g2_3","g2_4","g2_6","g2_9","g2_10","g2_12","g2_13","g2_14","g2_16","g2_17","g2_19","g2_20","g2_21","g2_24","g2_25","g2_27","g2_28","g2_30","g2_31","g2_32","g2_34","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_3","g2_5","g2_6","g2_8","g2_10","g2_12","g2_16","g2_18","g2_19","g2_20","g2_21","g2_22","g2_23","g2_25","g2_26","g2_27","g2_28","g2_31","g2_33","g2_34","g2_35","g2_37","g2_38","g2_39","g3_1","g3_2","g3_3","g3_4","g3_5","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_40","g2_1","g2_3","g2_5","g2_6","g2_8","g2_9","g2_10","g2_11","g2_12","g2_13","g2_15","g2_16","g2_17","g2_18","g2_23","g2_25","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_34","g2_35","g2_36","g2_37","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_1","g2_2","g2_3","g2_4","g2_6","g2_7","g2_8","g2_9","g2_10","g2_13","g2_14","g2_15","g2_18","g2_20","g2_21","g2_22","g2_25","g2_28","g2_29","g2_30","g2_33","g2_35","g2_37","g2_38","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_39","g3_40","g2_1","g2_2","g2_3","g2_5","g2_6","g2_10","g2_12","g2_13","g2_14","g2_17","g2_18","g2_19","g2_21","g2_22","g2_24","g2_26","g2_27","g2_29","g2_30","g2_33","g2_36","g2_38","g2_39","g2_40","g3_1","g3_2","g3_3","g3_4","g3_5","g3_6","g3_7","g3_8","g3_9","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_1","g2_3","g2_4","g2_5","g2_6","g2_9","g2_11","g2_12","g2_13","g2_14","g2_15","g2_17","g2_19","g2_20","g2_21","g2_22","g2_23","g2_24","g2_25","g2_27","g2_29","g2_31","g2_32","g2_34","g2_35","g2_37","g2_38","g3_2","g3_4","g3_5","g3_6","g3_7","g3_8","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_40","g2_2","g2_3","g2_4","g2_5","g2_6","g2_7","g2_9","g2_13","g2_14","g2_16","g2_17","g2_19","g2_21","g2_22","g2_23","g2_25","g2_26","g2_27","g2_28","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_10","g3_12","g3_14","g3_16","g3_18","g3_20","g3_25","g3_33","g3_35","g3_38","g3_39","g3_40","g2_3","g2_4","g2_5","g2_7","g2_8","g2_9","g2_10","g2_11","g2_12","g2_13","g2_14","g2_16","g2_17","g2_20","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_40","g3_2","g3_8","g3_10","g3_12","g3_13","g3_18","g3_19","g3_21","g3_29","g3_32","g3_36","g3_40","g2_4","g2_5","g2_6","g2_7","g2_8","g2_9","g2_10","g2_11","g2_12","g2_13","g2_14","g2_18","g2_19","g2_20","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_34","g2_35","g2_36","g2_37","g2_38","g2_40","g3_2","g3_11","g3_12","g3_16","g3_18","g3_20","g3_34","g3_38","g2_5","g2_6","g2_8","g2_9","g2_10","g2_13","g2_15","g2_16","g2_17","g2_19","g2_20","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_34","g2_35","g2_36","g2_38","g2_39","g2_40","g3_2","g3_4","g3_6","g3_8","g3_9","g3_11","g3_18","g3_21","g3_23","g3_26","g3_27","g3_29","g3_31","g3_32","g3_33","g3_39","g3_40","g2_6","g2_7","g2_8","g2_9","g2_10","g2_11","g2_12","g2_13","g2_14","g2_16","g2_17","g2_18","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_31","g2_32","g2_34","g2_36","g2_38","g2_39","g3_9","g3_10","g3_19","g3_20","g3_29","g3_30","g3_35","g3_36","g3_37","g2_7","g2_8","g2_11","g2_12","g2_13","g2_14","g2_16","g2_17","g2_18","g2_19","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_31","g2_32","g2_36","g2_37","g2_38","g2_39","g2_40","g3_5","g3_10","g3_12","g3_19","g3_21","g3_24","g3_28","g3_34","g3_37","g3_38","g2_8","g2_9","g2_10","g2_11","g2_12","g2_14","g2_16","g2_17","g2_18","g2_19","g2_20","g2_25","g2_26","g2_27","g2_29","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_38","g2_40","g3_5","g3_8","g3_13","g3_24","g3_29","g3_30","g3_33","g2_9","g2_11","g2_17","g2_18","g2_19","g2_20","g2_21","g2_23","g2_25","g2_26","g2_27","g2_28","g2_29","g2_32","g2_34","g2_35","g2_36","g2_37","g2_38","g2_40","g3_6","g3_7","g3_9","g3_13","g3_17","g3_19","g3_21","g3_22","g3_23","g3_24","g3_29","g3_36","g3_37","g3_39","g2_10","g2_12","g2_13","g2_14","g2_15","g2_17","g2_18","g2_19","g2_21","g2_22","g2_23","g2_24","g2_26","g2_28","g2_29","g2_30","g2_31","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_3","g3_9","g3_12","g3_14","g3_18","g3_23","g3_24","g3_25","g3_29","g3_32","g3_34","g3_35","g3_40","g2_11","g2_12","g2_14","g2_15","g2_16","g2_17","g2_18","g2_20","g2_21","g2_22","g2_23","g2_24","g2_25","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_37","g2_38","g2_39","g2_40","g3_1","g3_4","g3_6","g3_14","g3_22","g3_29","g3_30","g3_34","g3_39","g2_12","g2_14","g2_15","g2_16","g2_17","g2_18","g2_19","g2_20","g2_22","g2_23","g2_24","g2_25","g2_26","g2_29","g2_31","g2_32","g2_33","g2_35","g2_36","g2_37","g2_40","g3_1","g3_2","g3_3","g3_4","g3_9","g3_10","g3_12","g3_16","g3_24","g3_26","g3_29","g2_13","g2_14","g2_15","g2_16","g2_17","g2_18","g2_19","g2_20","g2_21","g2_23","g2_24","g2_25","g2_26","g2_27","g2_29","g2_30","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_39","g2_40","g3_1","g3_2","g3_4","g3_5","g3_6","g3_7","g3_9","g3_17","g3_18","g3_20","g3_21","g3_22","g3_26","g3_31","g3_37","g3_39","g2_14","g2_15","g2_16","g2_17","g2_18","g2_20","g2_21","g2_22","g2_24","g2_26","g2_27","g2_28","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_1","g3_4","g3_17","g3_24","g3_25","g3_27","g3_34","g3_36","g3_37","g3_40","g2_15","g2_17","g2_20","g2_21","g2_22","g2_23","g2_24","g2_26","g2_27","g2_31","g2_32","g2_33","g2_34","g2_38","g2_39","g2_40","g3_5","g3_6","g3_7","g3_11","g3_22","g3_25","g3_31","g3_35","g2_17","g2_19","g2_21","g2_25","g2_26","g2_27","g2_28","g2_30","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_1","g3_3","g3_4","g3_5","g3_7","g3_9","g3_10","g3_12","g3_15","g3_30","g3_37","g3_38","g3_39","g2_18","g2_19","g2_21","g2_23","g2_24","g2_25","g2_26","g2_28","g2_30","g2_31","g2_32","g2_34","g2_35","g2_36","g2_38","g2_39","g2_40","g3_4","g3_6","g3_11","g3_14","g3_15","g3_17","g3_19","g3_28","g3_30","g3_32","g3_38","g3_40","g2_18","g2_19","g2_20","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_30","g2_31","g2_33","g2_34","g2_35","g2_37","g2_38","g2_39","g2_40","g3_1","g3_2","g3_4","g3_7","g3_12","g3_19","g3_21","g3_23","g3_24","g3_26","g3_27","g3_40","g2_19","g2_20","g2_22","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_40","g3_3","g3_8","g3_14","g3_16","g3_19","g3_24","g3_25","g3_30","g3_32","g3_34","g3_37","g2_21","g2_24","g2_25","g2_26","g2_27","g2_29","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_40","g3_1","g3_2","g3_4","g3_10","g3_11","g3_15","g3_16","g3_21","g3_22","g3_23","g3_31","g3_32","g3_36","g3_39","g2_21","g2_22","g2_24","g2_26","g2_27","g2_28","g2_29","g2_32","g2_33","g2_35","g2_36","g2_37","g2_39","g2_40","g3_1","g3_5","g3_6","g3_7","g3_8","g3_12","g3_14","g3_18","g3_23","g3_29","g3_30","g3_31","g3_32","g3_36","g3_39","g3_40","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_30","g2_31","g2_33","g2_34","g2_35","g2_36","g2_38","g2_39","g2_40","g3_6","g3_7","g3_13","g3_17","g3_20","g3_21","g3_23","g3_25","g3_26","g3_29","g3_34","g3_37","g3_39","g3_40","g2_23","g2_24","g2_25","g2_27","g2_28","g2_29","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_2","g3_12","g3_13","g3_21","g3_24","g3_27","g3_28","g3_29","g3_35","g3_36","g3_37","g3_38","g3_40","g2_24","g2_25","g2_27","g2_28","g2_29","g2_31","g2_32","g2_34","g2_35","g2_36","g2_39","g2_40","g3_1","g3_2","g3_14","g3_15","g3_29","g3_33","g3_34","g3_37","g3_38","g3_40","g2_25","g2_26","g2_27","g2_28","g2_30","g2_31","g2_33","g2_34","g2_35","g2_38","g2_40","g3_3","g3_5","g3_8","g3_10","g3_13","g3_14","g3_22","g3_26","g3_29","g3_33","g2_26","g2_27","g2_28","g2_29","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_39","g3_1","g3_4","g3_10","g3_25","g3_27","g2_27","g2_29","g2_32","g2_34","g2_35","g2_37","g2_38","g2_39","g2_40","g3_7","g3_11","g3_12","g3_16","g3_19","g3_20","g3_28","g3_31","g3_37","g2_28","g2_30","g2_31","g2_34","g2_35","g2_36","g2_38","g2_40","g3_3","g3_4","g3_5","g3_6","g3_15","g3_16","g3_17","g3_21","g3_24","g3_25","g3_30","g3_31","g3_33","g3_35","g3_36","g3_39","g2_30","g2_31","g2_32","g2_33","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_6","g3_11","g3_23","g3_32","g3_40","g2_31","g2_33","g2_34","g2_36","g2_37","g2_38","g2_39","g2_40","g3_1","g3_9","g3_16","g3_20","g3_21","g3_26","g3_27","g3_37","g2_31","g2_37","g2_38","g2_39","g2_40","g3_13","g3_14","g3_16","g3_30","g3_31","g3_33","g3_37","g3_39","g3_40","g2_32","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g3_5","g3_6","g3_7","g3_14","g3_15","g3_17","g3_19","g3_20","g3_30","g3_31","g3_35","g3_40","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_40","g3_18","g3_19","g3_23","g3_24","g3_27","g3_32","g3_33","g2_35","g2_36","g2_40","g3_2","g3_5","g3_15","g3_18","g3_25","g3_30","g3_37","g3_40","g2_35","g2_36","g2_38","g2_40","g3_4","g3_8","g3_9","g3_11","g3_12","g3_13","g3_16","g3_17","g3_23","g3_28","g3_30","g3_37","g2_36","g2_37","g2_38","g2_39","g2_40","g3_1","g3_2","g3_6","g3_10","g3_16","g3_18","g3_21","g3_23","g3_27","g3_30","g3_32","g3_37","g2_38","g2_39","g2_40","g3_1","g3_5","g3_24","g3_26","g3_28","g3_29","g3_32","g3_33","g3_34","g3_35","g3_37","g2_38","g2_39","g2_40","g3_3","g3_5","g3_11","g3_24","g3_25","g3_27","g3_34","g3_37","g2_39","g3_1","g3_13","g3_17","g3_18","g3_20","g3_24","g3_27","g3_35","g3_40","g2_40","g3_2","g3_3","g3_7","g3_8","g3_9","g3_12","g3_14","g3_19","g3_20","g3_24","g3_28","g3_31","g3_36","g3_37","g3_38","g3_40","g3_3","g3_4","g3_10","g3_12","g3_19","g3_25","g3_26","g3_28","g3_32","g3_38","g3_2","g3_6","g3_10","g3_12","g3_13","g3_22","g3_25","g3_26","g3_28","g3_29","g3_31","g3_34","g3_38","g3_39","g3_40","g3_4","g3_8","g3_9","g3_10","g3_12","g3_13","g3_14","g3_15","g3_16","g3_18","g3_20","g3_24","g3_25","g3_26","g3_30","g3_33","g3_5","g3_9","g3_11","g3_16","g3_20","g3_21","g3_24","g3_26","g3_28","g3_29","g3_35","g3_37","g3_6","g3_8","g3_11","g3_12","g3_14","g3_17","g3_20","g3_26","g3_28","g3_31","g3_32","g3_33","g3_35","g3_37","g3_8","g3_13","g3_16","g3_17","g3_18","g3_19","g3_20","g3_22","g3_23","g3_25","g3_29","g3_30","g3_33","g3_36","g3_38","g3_39","g3_40","g3_8","g3_11","g3_15","g3_16","g3_17","g3_19","g3_20","g3_24","g3_26","g3_31","g3_37","g3_40","g3_9","g3_14","g3_16","g3_17","g3_19","g3_23","g3_24","g3_27","g3_31","g3_33","g3_34","g3_35","g3_10","g3_15","g3_16","g3_17","g3_20","g3_21","g3_24","g3_25","g3_27","g3_29","g3_31","g3_37","g3_38","g3_11","g3_13","g3_14","g3_16","g3_19","g3_20","g3_24","g3_27","g3_28","g3_31","g3_32","g3_35","g3_38","g3_40","g3_17","g3_20","g3_21","g3_23","g3_30","g3_34","g3_35","g3_36","g3_39","g3_12","g3_15","g3_16","g3_18","g3_19","g3_20","g3_21","g3_23","g3_24","g3_26","g3_27","g3_30","g3_32","g3_33","g3_34","g3_35","g3_38","g3_15","g3_18","g3_20","g3_22","g3_24","g3_25","g3_28","g3_34","g3_35","g3_37","g3_38","g3_39","g3_17","g3_18","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_28","g3_29","g3_31","g3_32","g3_37","g3_39","g3_16","g3_18","g3_20","g3_21","g3_24","g3_27","g3_28","g3_31","g3_33","g3_37","g3_38","g3_39","g3_16","g3_17","g3_18","g3_19","g3_20","g3_23","g3_28","g3_30","g3_33","g3_38","g3_18","g3_19","g3_20","g3_25","g3_26","g3_29","g3_31","g3_33","g3_34","g3_35","g3_36","g3_37","g3_39","g3_18","g3_19","g3_22","g3_27","g3_29","g3_34","g3_35","g3_37","g3_38","g3_40","g3_19","g3_21","g3_23","g3_28","g3_30","g3_31","g3_34","g3_20","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_30","g3_34","g3_36","g3_37","g3_38","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_29","g3_30","g3_32","g3_33","g3_38","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_33","g3_37","g3_38","g3_23","g3_24","g3_26","g3_27","g3_30","g3_31","g3_33","g3_35","g3_36","g3_37","g3_24","g3_26","g3_31","g3_32","g3_33","g3_34","g3_36","g3_37","g3_27","g3_28","g3_29","g3_30","g3_32","g3_33","g3_34","g3_36","g3_37","g3_39","g3_27","g3_29","g3_32","g3_33","g3_34","g3_35","g3_37","g3_38","g3_27","g3_28","g3_29","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_39","g3_32","g3_33","g3_36","g3_38","g3_29","g3_33","g3_35","g3_39","g3_40","g3_30","g3_31","g3_35","g3_38","g3_39","g3_40","g3_32","g3_35","g3_39","g3_34","g3_36","g3_37","g3_38","g3_40","g3_33","g3_36","g3_37","g3_39","g3_34","g3_38","g3_40","g3_39","g3_40","g3_38","g3_40","g3_40"]}},"type":"list","container":"div","options":{"color_col":"block","shape_col":"type"},"script":"var d3Script = function(d3, r2d3, data, div, width, height, options, theme, console) {\nthis.d3 = d3;\n\ndiv = d3.select(div.node());\n/* R2D3 Source File:  /Library/Frameworks/R.framework/Versions/3.6/Resources/library/sbmR/d3/network_viz.js */\n// !preview r2d3 data=sim_basic_block_network(3, 20), options = list(color_col = 'block', shape_col = 'type'), container = 'div'\n\ndiv.html('')\n  .style('width', `${width}px`)\n  .style('height', `${height}px`)\n  .style('position', 'relative');\n\n// Append the canvas\nconst canvas = div.append('canvas')\n  .style('position', 'absolute')\n  .style('bottom', 0)\n  .style('width', `${width}px`)\n  .style('height', `${height}px`)\n  .attr('width', width*2)\n  .attr('height', height*2);\n\nconst context = canvas.node().getContext('2d');\ncontext.scale(2,2); // Makes things bigger so it looks good on retina\n\n// Append the svg and padded g element\nconst svg = div.append('svg')\n  .html('') // wipe svg content if need be\n  .style('position', 'absolute')\n  .style('bottom', 0)\n  .style('width', `${width}px`)\n  .style('height', `${height}px`)\n  .attr('width', width)\n  .attr('height', height)\n  .attr(\"viewBox\", [0, 0, width, height]);\n\n// Get color and shape column names from options\nconst {color_col, shape_col} = options;\n\n// Clean up data into the node and link format that d3 needs\nconst links = HTMLWidgets.dataframeToD3(data.edges)\n  .map(function(edge){return({source: edge.from, target: edge.to})});\nconst nodes = HTMLWidgets.dataframeToD3(data.nodes);\n\n\n// If we're missing values for our aesthetic mapping columns,  fill them in with constant values.\nif(!nodes[0][color_col]){\n  nodes.forEach(function(node){node[color_col] = color_col});\n}\nif(!nodes[0][shape_col]){\n  nodes.forEach(function(node){node[shape_col] = shape_col});\n}\n\n// Try and detect if color column is a numerical continuous value\nconst unique_color_vals = unique(nodes.map(d => d[color_col]));\nconst color_is_continuous = (unique_color_vals.length > 10) && converts_to_numeric(unique_color_vals[0]);\n\n// Color encodes the node's block\nconst Color = color_is_continuous\n  ? d3.scaleLinear().range([\"white\", \"steelblue\"]).domain(d3.extent(unique_color_vals))\n  : d3.scaleOrdinal().range(d3.schemeCategory10).domain(unique_color_vals);\n\nconst color_node = node => {\n  const color_val = node[color_col];\n  return Color(color_is_continuous ? +color_val : color_val);\n};\n\n// Shape encodes the node's type\nconst Shape = d3.scaleOrdinal()\n  .range(d3.symbols)\n  .domain(unique(nodes.map(d => d[shape_col])));\nconst draw_shape = node => d3.symbol().size(150)\n  .type(Shape(node[shape_col]))();\n\n\nconst padding = 15;\nconst X = d3.scaleLinear()\n  .range([padding, width-padding]);\n\nconst Y = d3.scaleLinear()\n  .range([padding, height-padding]);\n\n// Setup the simulation\nconst simulation = d3.forceSimulation(nodes)\n      .force(\"link\", d3.forceLink(links).id(d => d.id))\n      .force(\"charge\", d3.forceManyBody())\n      .force(\"center\", d3.forceCenter(width / 2, height / 2));\n\nlet not_being_dragged = true;\n\n// Setup the svg node components\nconst node = svg.append(\"g\")\n  .attr(\"stroke\", \"#fff\")\n  .selectAll(\"path.node\")\n  .data(nodes)\n  .enter().append('path')\n  .classed('node', true)\n  .attr('fill', color_node)\n  .attr('d', draw_shape)\n  .call(drag(simulation));\n\n// Canvas constants\n// Set color of edges\ncontext.strokeStyle = 'black';\n\nconst lowest_opacity = 0.05;\n// Scale edge opacity based upon how many edges we have\ncontext.globalAlpha = Math.max(d3.scaleLinear()\n                                 .domain([0,10000])\n                                 .range([0.3, lowest_opacity])(links.length), lowest_opacity);\n\n\n// Kickoff simulation\nsimulation.on(\"tick\", () => {\n\n if(not_being_dragged){\n   X.domain(d3.extent(nodes.map(d => d.x)));\n   Y.domain(d3.extent(nodes.map(d => d.y)));\n }\n\n  // Clear canvas\n  context.clearRect(0, 0, +canvas.attr('width'), +canvas.attr('height'));\n\n  context.beginPath();\n  links.forEach(d => {\n    context.moveTo(X(d.source.x), Y(d.source.y));\n    context.lineTo(X(d.target.x), Y(d.target.y));\n  });\n\n  // Draw to canvas\n  context.stroke();\n\n  // Update node positions\n  node.attr('transform', d => `translate(${X(d.x)}, ${Y(d.y)})`);\n});\n\n\nfunction drag(simulation){\n  function dragstarted(d) {\n    if (!d3.event.active) simulation.alphaTarget(0.3).restart();\n    d.fx = d.x;\n    d.fy = d.y;\n    not_being_dragged = false;\n  }\n\n  function dragged(d) {\n    d.fx = d3.event.x;\n    d.fy = d3.event.y;\n  }\n\n  function dragended(d) {\n    if (!d3.event.active) simulation.alphaTarget(0);\n    d.fx = null;\n    d.fy = null;\n    not_being_dragged = true;\n  }\n\n  return d3.drag()\n      .on(\"start\", dragstarted)\n      .on(\"drag\", dragged)\n      .on(\"end\", dragended);\n}\n\nfunction converts_to_numeric(val){\n  return !isNaN(+val);\n}\n\nfunction unique (vals){\n  return [...new Set(vals)];\n}\n\n\n};","style":null,"version":5,"theme":{"default":{"background":"#FFFFFF","foreground":"#000000"},"runtime":null},"useShadow":true},"evals":[],"jsHooks":[]}</script>
]

---

## Find optimal MCMC initialization

```r
# Setup SBM from data
my_sbm <- create_sbm(network)

# Run agglomerative collapsing
collapse_results <- my_sbm %>%
  collapse_blocks(sigma = 1.01)

# Visualize method used to
# choose best state from
# results
collapse_results %>%
  visualize_collapse_results(
    heuristic = 'delta_ratio'
  ) +
  xlim(0,15) +
  geom_vline(xintercept = k)
```
]

]

---

## Sanity check...

We can join the model's state after our collapse with the true generating data's blocks to see how well the collapsing algorithm fit the data.
.left-code[

```r
# Model state after merge
merged_state <- my_sbm %>%
  get_state() %>%
  select(id, parent)

# Join with true block info
left_join(
  network$nodes,
  merged_state,
  by = "id"
) %>%
  rename(inferred = parent) %$%
  table(inferred, block)
```
]

```
##         block
## inferred g1 g2 g3
##   0-1_30 40  0  0
##   0-1_77  0 40  0
##   0-1_95  0  0 40
```
]

---

## Sampling from posterior

Run MCMC sweeps from collapse starting point to investigate the posterior structure.

```r
sweep_results <- my_sbm %>%
  mcmc_sweep(num_sweeps = 75,
             eps = 0.25,
             track_pairs = TRUE)

# Plot Sweep Results
sweep_results$sweep_info %>%
  mutate(sweep = 1:n()) %>%
  pivot_longer(
    c(entropy_delta,
      num_nodes_moved)
  ) %>%
  ggplot(aes(x = sweep,
             y = value)) +
  geom_line() +
  facet_grid(name~.,
             scales = "free_y")
```
]

]

---

## Investigating Uncertainty in clustering

Plot the pairwise probability two nodes residing in the same block

```r
sweep_results$pairing_counts %>%
  ggplot(aes(x = node_a,
             y = node_b)) +
  geom_raster(
    aes(fill = proportion_connected)
  ) +
  theme(
    axis.text = element_blank(),
    axis.ticks = element_blank()
  )
```
]

]

---

## Concensus-SNE

Package function to visualize the pairwise node to node block similarity with a network.

```r
sweep_results %>%
  visualize_propensity_network()
```
]

.right-plot[
<div id="htmlwidget-72f3e1d64c24a71896d5" style="width:100%;height:288px;" class="r2d3 html-widget"></div>
<script type="application/json" data-for="htmlwidget-72f3e1d64c24a71896d5">{"x":{"data":{"edges":{"from":["g3_9","g3_7","g3_9","g3_6","g3_8","g3_7","g3_6","g3_9","g3_8","g3_6","g3_5","g3_7","g3_40","g3_9","g3_8","g3_5","g3_40","g3_4","g3_8","g3_7","g3_5","g3_40","g3_4","g3_9","g3_8","g3_40","g3_38","g3_7","g3_6","g3_37","g3_9","g3_7","g3_6","g3_5","g3_38","g3_36","g3_9","g3_8","g3_39","g3_37","g3_36","g3_35","g3_8","g3_7","g3_6","g3_5","g3_4","g3_39","g3_38","g3_36","g3_35","g3_9","g3_6","g3_37","g3_36","g3_35","g3_34","g3_9","g3_6","g3_5","g3_4","g3_39","g3_36","g3_34","g3_33","g3_32","g3_9","g3_8","g3_7","g3_6","g3_40","g3_37","g3_34","g3_32","g3_8","g3_7","g3_5","g3_40","g3_4","g3_39","g3_38","g3_37","g3_31","g3_30","g3_8","g3_7","g3_6","g3_40","g3_37","g3_36","g3_35","g3_34","g3_33","g3_31","g3_30","g3_9","g3_7","g3_6","g3_5","g3_40","g3_37","g3_36","g3_35","g3_33","g3_32","g3_31","g3_30","g3_9","g3_8","g3_7","g3_6","g3_5","g3_40","g3_39","g3_37","g3_36","g3_35","g3_34","g3_33","g3_32","g3_31","g3_30","g3_3","g3_8","g3_6","g3_40","g3_4","g3_38","g3_37","g3_36","g3_33","g3_32","g3_31","g3_30","g3_28","g3_27","g3_40","g3_9","g3_8","g3_7","g3_6","g3_40","g3_38","g3_37","g3_36","g3_35","g3_29","g3_26","g3_9","g3_7","g3_6","g3_4","g3_39","g3_38","g3_33","g3_31","g3_30","g3_3","g3_29","g3_28","g3_27","g3_25","g3_8","g3_7","g3_6","g3_5","g3_4","g3_39","g3_38","g3_35","g3_30","g3_3","g3_29","g3_27","g3_26","g3_25","g3_6","g3_40","g3_4","g3_36","g3_39","g3_37","g3_36","g3_35","g3_32","g3_29","g3_24","g3_23","g3_5","g3_9","g3_8","g3_35","g3_5","g3_40","g3_39","g3_37","g3_36","g3_32","g3_31","g3_30","g3_3","g3_28","g3_27","g3_26","g3_24","g3_23","g3_22","g3_7","g3_5","g3_40","g3_38","g3_36","g3_34","g3_33","g3_32","g3_30","g3_3","g3_39","g3_24","g3_23","g3_22","g3_9","g3_8","g3_7","g3_6","g3_5","g3_37","g3_36","g3_35","g3_34","g3_33","g3_30","g3_3","g3_29","g3_27","g3_26","g3_25","g3_24","g3_23","g3_21","g3_20","g3_9","g3_8","g3_7","g3_6","g3_5","g3_40","g3_4","g3_38","g3_36","g3_35","g3_33","g3_3","g3_28","g3_27","g3_26","g3_21","g3_20","g3_2","g3_9","g3_5","g3_4","g3_39","g3_38","g3_37","g3_31","g3_30","g3_3","g3_29","g3_27","g3_26","g3_25","g3_24","g3_22","g3_21","g3_20","g3_2","g3_19","g3_9","g3_8","g3_6","g3_5","g3_40","g3_4","g3_36","g3_35","g3_33","g3_31","g3_3","g3_28","g3_27","g3_26","g3_25","g3_23","g3_20","g3_2","g3_18","g3_6","g3_5","g3_40","g3_37","g3_36","g3_34","g3_32","g3_31","g3_30","g3_3","g3_23","g3_29","g3_27","g3_25","g3_24","g3_23","g3_22","g3_21","g3_20","g3_19","g3_17","g3_9","g3_8","g3_7","g3_6","g3_5","g3_36","g3_33","g3_30","g3_3","g3_26","g3_25","g3_24","g3_23","g3_22","g3_20","g3_19","g3_18","g3_16","g3_40","g3_4","g3_39","g3_38","g3_34","g3_33","g3_31","g3_30","g3_29","g3_28","g3_27","g3_25","g3_22","g3_21","g3_20","g3_18","g3_17","g3_9","g3_8","g3_7","g3_5","g3_4","g3_37","g3_35","g3_33","g3_30","g3_29","g3_28","g3_27","g3_26","g3_25","g3_23","g3_22","g3_21","g3_20","g3_2","g3_35","g3_19","g3_17","g3_16","g3_15","g3_14","g3_40","g3_24","g3_38","g3_37","g3_35","g3_34","g3_8","g3_33","g3_32","g3_3","g3_28","g3_27","g3_25","g3_24","g3_23","g3_21","g3_20","g3_2","g3_18","g3_17","g3_16","g3_15","g3_9","g3_8","g3_7","g3_6","g3_5","g3_40","g3_4","g3_37","g3_36","g3_35","g3_33","g3_32","g3_31","g3_31","g3_29","g3_27","g3_24","g3_22","g3_21","g3_2","g3_17","g3_16","g3_14","g3_12","g3_8","g3_7","g3_4","g3_38","g3_35","g3_34","g3_33","g3_32","g3_30","g3_29","g3_26","g3_23","g3_22","g2_40","g2_39","g3_21","g3_11","g3_7","g3_6","g3_5","g3_40","g3_4","g1_30","g3_38","g3_33","g3_29","g3_27","g3_23","g3_21","g3_6","g3_18","g3_9","g2_6","g3_16","g3_10","g3_32","g1_9","g1_24","g2_9","g3_8","g3_34","g2_8","g2_8","g2_36","g2_9","g2_30","g2_40","g2_32","g3_33","g1_39","g3_38","g2_8","g2_7","g3_14","g3_38","g1_38","g2_8","g2_5","g3_26","g1_9","g2_8","g2_5","g1_3","g2_34","g2_8","g1_26","g2_6","g3_31","g1_31","g2_5","g2_40","g2_24","g2_4","g2_39","g2_31","g2_9","g3_35","g2_36","g2_38","g2_4","g2_39","g3_34","g2_7","g2_30","g3_39","g2_40","g1_27","g1_9","g2_8","g2_4","g2_39","g2_9","g2_38","g1_6","g2_11","g1_37","g2_8","g3_32","g2_6","g2_38","g2_39","g3_35","g1_34","g2_8","g2_7","g2_40","g2_39","g2_36","g2_35","g2_6","g2_38","g2_35","g1_36","g1_33","g1_6","g1_39","g1_11","g2_40","g2_4","g2_37","g3_28","g2_36","g2_35","g2_33","g1_9","g2_6","g3_15","g2_5","g2_40","g2_38","g2_34","g3_33","g3_7","g1_24","g2_7","g2_9","g1_4","g2_9","g1_34","g2_40","g2_4","g2_38","g2_33","g2_37","g2_36","g2_37","g2_31","g3_31","g3_4","g3_25","g1_7","g3_9","g3_40","g3_39","g3_5","g2_5","g2_24","g2_9","g3_34","g2_6","g2_5","g2_40","g2_4","g2_39","g2_35","g2_33","g3_37","g1_8","g3_18","g2_17","g3_6","g1_27","g2_9","g2_8","g2_5","g2_39","g2_35","g2_33","g1_5","g1_35","g2_9","g2_8","g2_7","g2_35","g2_16","g2_30","g2_3","g2_37","g3_5","g1_36","g2_32","g3_35","g2_3","g2_9","g2_5","g2_38","g2_7","g2_6","g2_40","g2_39","g2_38","g3_3","g2_32","g3_33","g1_31","g1_22","g1_34","g2_4","g1_33","g1_29","g2_8","g2_7","g2_5","g2_38","g2_36","g2_35","g2_34","g2_31","g2_3","g3_25","g1_28","g2_28","g1_31","g2_6","g2_40","g2_36","g2_34","g2_33","g2_31","g2_3","g2_28","g2_26","g3_30","g3_40","g3_36","g2_9","g2_8","g2_4","g2_34","g1_33","g2_32","g2_3","g2_29","g1_33","g2_28","g1_39","g3_29","g2_2","g3_39","g2_7","g2_3","g2_23","g2_40","g2_37","g1_5","g2_36","g2_35","g2_30","g2_3","g2_26","g3_5","g2_5","g1_6","g1_25","g2_38","g3_39","g2_9","g2_8","g3_4","g2_6","g2_40","g2_38","g2_37","g2_33","g2_30","g1_8","g2_3","g2_29","g2_26","g3_38","g2_25","g2_24","g2_27","g2_29","g2_26","g2_4","g3_37","g1_33","g3_24","g2_7","g1_31","g2_6","g2_39","g2_37","g2_35","g2_33","g2_32","g2_28","g2_27","g3_4","g2_9","g3_33","g2_7","g2_33","g2_39","g2_30","g2_35","g2_33","g2_32","g2_31","g2_20","g2_3","g2_39","g2_9","g2_28","g2_26","g3_36","g2_25","g2_17","g2_22","g3_40","g1_40","g3_6","g2_29","g2_32","g2_37","g2_27","g2_29","g1_40","g2_40","g3_28","g3_21","g2_8","g2_34","g2_3","g2_31","g2_30","g2_26","g2_23","g1_36","g1_39","g3_27","g2_21","g1_34","g1_34","g3_13","g2_6","g2_4","g2_39","g2_37","g2_32","g2_31","g2_31","g3_29","g2_33","g2_3","g2_28","g2_26","g1_32","g2_25","g2_2","g3_30","g3_4","g1_36","g2_23","g2_9","g2_5","g2_38","g2_34","g2_29","g2_28","g2_27","g2_26","g1_7","g2_25","g2_7","g2_24","g2_9","g2_23","g2_21","g3_4","g2_21","g2_5","g2_18","g2_37","g2_8","g3_19","g2_5","g2_6","g2_40","g2_4","g2_39","g2_33","g2_31","g2_30","g2_29","g2_28","g2_26","g2_25","g2_24","g1_36","g2_23","g2_22","g2_35","g1_38","g2_8","g1_30","g1_40","g1_7","g1_9","g2_2","g2_5","g2_40","g2_6","g1_31","g2_4","g2_39","g2_34","g2_9","g2_32","g2_31","g2_29","g2_28","g2_27","g1_25","g2_25","g2_23","g2_21","g2_20","g1_32","g2_8","g2_2","g2_18","g3_38","g2_5","g2_39","g2_6","g3_24","g2_4","g3_28","g2_9","g2_6","g2_4","g2_5","g2_4","g2_39","g2_38","g2_35","g2_34","g2_33","g2_39","g2_32","g2_15","g2_31","g2_30","g2_28","g2_27","g2_24","g2_22","g2_21","g2_20","g2_7","g2_2","g3_6","g2_19","g2_16","g2_3","g3_40","g2_36","g1_28","g2_9","g1_31","g2_8","g2_39","g2_8","g3_5","g2_6","g2_35","g2_28","g2_25","g2_24","g2_38","g3_40","g2_23","g2_21","g2_19","g3_39","g3_16","g3_22","g2_17","g3_38","g2_37","g2_5","g3_19","g3_23","g1_37","g2_9","g2_20","g2_36","g2_6","g2_38","g2_40","g2_4","g2_39","g2_37","g2_36","g2_33","g2_32","g3_36","g2_29","g2_28","g2_25","g2_23","g2_13","g2_36","g2_17","g2_16","g3_32","g2_19","g2_23","g3_28","g1_18","g2_7","g2_4","g1_38","g2_40","g2_39","g2_35","g1_30","g2_31","g2_30","g2_3","g2_29","g2_28","g2_5","g2_22","g2_27","g2_24","g2_23","g2_22","g3_40","g2_21","g2_20","g2_2","g2_25","g3_22","g2_19","g3_3","g2_16","g3_12","g1_28","g3_8","g2_31","g2_7","g2_40","g2_37","g2_39","g2_36","g1_34","g2_35","g2_34","g2_31","g2_3","g2_29","g2_27","g2_26","g2_25","g2_23","g2_22","g2_21","g2_2","g2_19","g2_18","g2_17","g2_15","g2_14","g2_9","g2_4","g1_39","g1_18","g2_28","g3_22","g2_9","g2_7","g2_5","g2_4","g2_37","g2_36","g3_9","g1_28","g2_34","g1_38","g2_33","g2_32","g3_3","g2_29","g2_28","g2_27","g2_26","g1_6","g2_24","g2_21","g2_19","g2_17","g2_25","g2_16","g1_15","g2_14","g2_32","g1_9","g2_37","g3_8","g2_7","g2_39","g2_9","g3_8","g2_7","g2_6","g2_4","g2_36","g2_35","g2_33","g2_32","g2_30","g2_25","g2_24","g2_23","g2_22","g2_21","g2_2","g2_20","g2_18","g2_17","g2_15","g2_14","g2_11","g3_27","g3_29","g2_40","g3_4","g3_34","g3_15","g2_6","g1_6","g3_4","g2_6","g1_23","g3_4","g1_36","g2_40","g2_27","g2_3","g3_26","g2_4","g2_16","g2_5","g2_8","g2_36","g2_30","g1_9","g2_6","g2_9","g1_38","g2_8","g2_32","g2_37","g2_37","g2_25","g3_39","g1_29","g1_9","g1_9","g2_31","g2_4","g1_18","g3_5","g2_7","g3_40","g1_35","g2_33","g2_36","g2_39","g1_18","g2_26","g2_39","g2_13","g1_31","g1_9","g2_3","g3_26","g1_33","g3_3","g1_40","g1_25","g1_9","g2_33","g1_4","g3_20","g2_17","g1_34","g1_20","g1_8","g1_7","g2_7","g2_36","g3_32","g2_30","g3_33","g1_4","g3_35","g2_30","g2_6","g1_8","g2_3","g2_21","g3_32","g1_9","g2_15","g1_6","g3_4","g2_30","g1_23","g1_29","g2_27","g1_38","g2_6","g2_31","g2_5","g3_4","g1_30","g1_3","g2_39","g3_20","g1_7","g1_37","g1_8","g1_6","g1_7","g1_3","g3_28","g1_22","g1_7","g3_5","g1_25","g2_9","g3_28","g2_12","g1_30","g2_40","g1_32","g1_7","g2_38","g1_6","g1_5","g2_6","g3_31","g3_31","g3_30","g3_30","g2_24","g2_2","g3_34","g1_7","g1_6","g3_31","g1_5","g1_28","g1_5","g2_25","g3_34","g3_32","g1_26","g2_8","g3_39","g2_40","g1_6","g2_40","g1_14","g3_38","g3_11","g3_6","g2_40","g2_7","g2_37","g2_33","g1_9","g1_8","g2_8","g1_6","g1_5","g2_20","g1_11","g2_32","g2_9","g2_36","g2_32","g1_6","g3_31","g1_15","g3_33","g3_37","g1_5","g3_26","g1_34","g2_25","g2_8","g1_8","g1_26","g1_35","g3_7","g1_9","g2_14","g1_39","g3_31","g2_30","g3_34","g1_3","g1_5","g2_4","g1_4","g1_30","g1_27","g1_3","g1_40","g3_3","g1_26","g2_27","g3_7","g1_9","g3_27","g1_39","g3_2","g1_7","g1_6","g1_5","g1_5","g1_5","g1_4","g2_5","g2_19","g2_18","g3_33","g2_18","g1_7","g2_38","g2_38","g1_39","g3_7","g1_4","g1_7","g3_37","g1_20","g1_37","g2_40","g2_20","g2_27","g3_39","g1_40","g3_28","g3_28","g1_39","g1_22","g3_13","g2_7","g2_9","g2_4","g1_32","g3_2","g1_3","g1_5","g1_5","g3_4","g3_5","g3_15","g2_39","g2_37","g1_9","g1_26","g1_40","g1_4","g1_32","g1_7","g1_31","g1_39","g1_35","g1_35","g1_31","g1_30","g2_29","g3_7","g3_34","g2_33","g2_40","g1_3","g1_8","g3_38","g1_38","g1_6","g1_36","g2_13","g3_5","g1_16","g1_29","g3_35","g1_9","g3_29","g1_2","g2_39","g1_21","g1_17","g2_25","g3_28","g1_26","g1_40","g1_39","g2_5","g1_6","g1_40","g1_37","g2_7","g2_15","g1_2","g1_5","g3_12","g2_30","g1_35","g1_4","g1_8","g3_34","g1_2","g1_17","g1_23","g1_3","g2_27","g3_17","g1_30","g2_2","g2_32","g3_9","g2_34","g1_28","g2_35","g1_37","g3_24","g1_17","g1_3","g1_26","g2_8","g1_9","g3_14","g1_39","g1_38","g1_33","g2_37","g1_32","g2_34","g2_33","g2_38","g1_37","g1_33","g3_40","g3_28","g1_38","g3_30","g1_33","g1_9","g1_8","g1_7","g1_4","g1_39","g1_37","g1_36","g2_39","g1_20","g1_32","g3_36","g2_21","g2_7","g2_30","g3_13","g3_32","g2_32","g1_34","g2_5","g2_20","g1_10","g3_32","g3_31","g2_37","g3_34","g2_34","g1_39","g1_21","g1_9","g1_19","g1_40","g2_22","g3_29","g1_39","g1_36","g2_24","g1_35","g2_5","g1_17","g1_33","g1_32","g1_31","g1_34","g1_8","g2_21","g1_40","g2_23","g1_6","g1_5","g3_28","g3_8","g2_27","g1_24","g1_8","g1_24","g1_3","g1_40","g1_4","g2_34","g2_3","g1_5","g1_3","g1_8","g1_8","g3_14","g1_34","g2_6","g3_5","g1_9","g1_7","g1_5","g2_27","g2_5","g1_6","g1_38","g1_38","g1_37","g1_8","g1_21","g1_32","g2_29","g1_34","g1_31","g1_20","g1_35","g1_30","g1_32","g1_33","g1_31","g1_3","g2_5","g2_5","g3_25","g1_36","g2_26","g2_8","g1_40","g2_37","g3_37","g2_37","g2_31","g2_16","g1_25","g2_5","g2_38","g3_17","g2_7","g1_5","g3_6","g2_33","g2_14","g2_19","g1_26","g1_7","g2_38","g1_32","g1_37","g1_36","g2_38","g3_7","g1_32","g3_26","g1_30","g1_36","g1_29","g3_7","g1_29","g3_32","g2_33","g3_37","g1_32","g1_8","g3_38","g2_22","g1_24","g2_9","g1_35","g2_8","g1_16","g2_36","g3_25","g1_24","g3_9","g2_7","g1_23","g1_31","g1_36","g1_30","g1_26","g1_15","g1_9","g2_5","g1_27","g3_29","g1_4","g1_8","g1_8","g1_8","g1_9","g2_40","g1_40","g1_39","g2_36","g1_4","g1_38","g2_34","g1_37","g2_39","g1_36","g1_35","g1_34","g2_26","g1_32","g1_29","g3_31","g1_28","g3_8","g2_26","g1_38","g2_39","g3_5","g3_25","g3_22","g2_3","g3_3","g1_30","g1_40","g3_8","g1_38","g1_31","g2_31","g2_5","g2_9","g1_31","g3_30","g1_38","g1_30","g1_30","g1_7","g1_6","g1_5","g1_4","g1_16","g1_3","g2_6","g3_21","g3_8","g1_7","g3_25","g3_29","g1_38","g2_28","g2_38","g2_9","g3_18","g2_40","g2_5","g1_6","g2_26","g1_7","g2_24","g3_29","g1_36","g1_34","g1_9","g1_9","g1_34","g2_22","g1_40","g1_4","g3_6","g1_4","g1_39","g1_38","g3_19","g1_37","g1_36","g1_32","g3_4","g1_31","g1_30","g1_29","g1_15","g1_5","g3_15","g3_3","g3_24","g1_36","g1_37","g1_14","g2_20","g2_8","g1_39","g2_22","g3_2","g1_5","g2_37","g1_37","g2_8","g3_34","g2_37","g1_40","g3_40","g3_9","g1_9","g3_25","g1_7","g3_35","g1_6","g1_5","g2_33","g1_40","g1_8","g3_32","g1_39","g1_36","g1_8","g1_33","g1_35","g1_32","g3_34","g1_33","g1_21","g1_29","g1_28","g1_25","g1_39","g1_38","g3_38","g1_21","g2_34","g2_4","g2_36","g1_37","g3_9","g1_21","g1_33","g1_23","g3_20","g1_36","g1_28","g1_4","g3_36","g2_3","g1_4","g2_33","g1_8","g1_7","g1_6","g1_4","g1_39","g1_36","g1_35","g1_32","g3_37","g2_8","g3_9","g1_24","g3_30","g1_8","g2_6","g1_5","g3_36","g1_24","g3_5","g1_34","g2_37","g1_40","g1_37","g3_2","g1_24","g2_9","g2_34","g1_35","g1_35","g1_27","g2_7","g2_25","g3_39","g3_38","g1_4","g1_9","g3_7","g1_6","g1_40","g1_4","g1_22","g1_35","g1_8","g1_23","g3_35","g1_26","g1_32","g1_40","g3_6","g1_8","g1_6","g1_8","g1_8","g1_19","g1_29","g3_38","g1_36","g3_9","g3_5","g2_5","g1_37","g1_7","g1_17","g1_21","g1_14","g1_26","g2_3","g1_6","g1_8","g1_6","g1_4","g1_39","g3_17","g1_37","g2_24","g1_37","g1_24","g1_23","g1_33","g1_23","g3_39","g1_16","g3_29","g2_36","g3_13","g3_39","g3_9","g1_24","g2_28","g1_35","g3_38","g1_35","g2_7","g1_31","g3_18","g3_9","g2_31","g1_21","g2_19","g3_9","g1_3","g2_35","g2_28","g3_38","g1_7","g2_13","g1_8","g1_7","g1_4","g1_39","g1_17","g2_9","g1_5","g1_28","g1_27","g1_21","g1_25","g1_22","g1_6","g1_40","g1_34","g1_40","g3_6","g3_34","g3_38","g3_39","g1_33","g1_33","g1_21","g2_36","g1_39","g2_3","g1_5","g2_40","g3_4","g1_12","g3_37","g1_17","g1_40","g1_29","g1_40","g1_40","g1_32","g2_35","g1_37","g1_28","g1_19","g1_25","g1_35","g1_38","g3_32","g1_22","g1_20","g1_9","g1_39","g1_28","g1_27","g2_9","g2_8","g2_6","g2_7","g2_26","g1_31","g2_15","g1_19","g3_7","g1_8","g1_9","g2_27","g1_3","g2_38","g1_6","g2_6","g1_12","g1_38","g3_24","g1_26","g3_27","g1_9","g1_7","g1_6","g1_39","g1_4","g3_39","g1_35","g1_36","g1_28","g1_27","g1_22","g2_35","g2_33","g2_4","g1_20","g1_35","g1_19","g1_6","g1_8","g3_33","g1_37","g1_37","g2_33","g3_35","g2_4","g1_23","g3_39","g1_38","g3_39","g1_23","g1_37","g1_36","g1_29","g2_32","g1_27","g3_16","g1_7","g1_4","g1_7","g2_37","g2_35","g1_30","g2_32","g1_27","g2_9","g2_34","g3_3","g3_4","g3_39","g1_27","g3_34","g1_8","g3_28","g3_36","g3_19","g1_38","g1_23","g1_27","g1_20","g2_30","g1_5","g1_9","g1_8","g2_4","g1_36","g2_9","g2_38","g3_38","g1_35","g1_34","g1_32","g1_30","g3_32","g1_28","g1_27","g2_30","g1_23","g2_8","g1_22","g1_20","g2_8","g2_9","g3_4","g2_35","g2_24","g1_40","g2_38","g2_8","g3_39","g2_35","g1_19","g3_34","g1_3","g1_33","g3_36","g1_25","g1_36","g3_6","g1_2","g3_9","g1_29","g1_24","g3_23","g2_6","g1_25","g1_40","g3_8","g1_33","g1_39","g1_9","g2_32","g3_36","g1_40","g1_4","g1_8","g1_38","g1_37","g2_40","g1_30","g2_37","g3_7","g1_29","g2_35","g1_13","g1_26","g2_6","g1_25","g1_22","g1_9","g2_22","g1_2","g2_38","g1_3","g2_9","g1_38","g1_6","g1_39","g2_31","g1_9","g1_18","g2_12","g3_38","g1_5","g1_24","g3_9","g1_37","g1_31","g2_34","g1_34","g1_36","g1_21","g1_32","g2_5","g1_38","g2_31","g3_33","g2_4","g1_29","g1_27","g2_32","g1_30","g2_31","g1_31","g3_26","g1_35","g1_26","g1_34","g1_29","g1_29","g1_25","g1_20","g2_28","g1_30","g1_4","g2_7","g1_30","g1_40","g2_18","g2_7","g2_32","g2_20","g3_31","g1_38","g2_36","g2_36","g1_18","g1_21","g3_40","g3_39","g1_19","g1_4","g1_7","g3_32","g3_8","g1_15","g2_2","g2_8","g2_36","g3_8","g2_6","g2_34","g2_40","g1_8","g1_23","g1_8","g1_33","g2_37","g2_34","g1_34","g1_33","g2_29","g1_34","g2_7","g2_7","g1_37","g1_20","g1_33","g1_39","g1_36","g1_33","g2_32","g1_3","g1_31","g1_7","g2_35","g1_26","g1_24","g2_40","g3_24","g2_38","g1_29","g2_36","g2_27","g1_40","g1_20","g1_35","g1_8","g1_3","g1_35","g1_29","g1_7","g1_29","g2_38","g3_39","g2_22","g1_25","g1_7","g3_37","g1_7","g3_34","g2_4","g1_37","g1_4","g1_23","g1_35","g3_8","g2_35","g1_37","g1_26","g3_3","g1_5","g1_39","g1_38","g2_30","g1_37","g2_39","g1_33","g1_19","g3_3","g3_21","g1_9","g1_7","g1_9","g1_25","g2_7","g1_30","g1_2","g3_40","g1_16","g1_34","g1_2","g2_6","g1_38","g1_5","g2_34","g1_4","g1_39","g2_27","g1_5","g3_8","g1_4","g3_8","g2_30","g1_32","g1_4","g3_7","g2_29","g1_7","g1_13","g1_9","g1_21","g3_23","g1_37","g2_24","g1_16","g2_10","g2_40","g1_6","g1_3","g2_4","g2_30","g2_22","g2_29","g1_38","g1_3","g2_7","g1_5","g1_22","g1_26","g1_29","g2_6","g1_38","g1_32","g3_2","g1_28","g1_23","g1_17","g3_35","g1_14","g1_22","g1_40","g1_27","g2_7","g1_28","g2_38","g1_18","g1_35","g2_8","g1_16","g2_34","g3_7","g3_7","g1_35","g2_37","g1_2","g2_26","g1_5","g2_4","g3_19","g2_9","g2_35","g1_36","g1_2","g2_23","g2_29","g2_18","g3_37","g3_26","g3_9","g3_27","g1_19","g1_32","g1_27","g2_20","g1_9","g3_39","g1_22","g1_30","g3_5","g1_40","g2_36","g3_6","g3_8","g1_18","g1_25","g3_31","g1_31","g1_40","g3_9","g1_5","g2_34","g1_34","g2_31","g1_32","g2_38","g1_27","g1_34","g1_34","g1_19","g1_22","g1_13","g1_24","g3_7","g2_19","g1_8","g2_31","g3_40","g1_28","g2_7","g2_12","g3_22","g3_18","g3_6","g2_34","g1_28","g1_22","g1_34","g3_37","g2_6","g2_18","g1_2","g1_12","g1_31","g3_37","g2_29","g1_25","g1_4","g3_9","g1_4","g2_8","g1_6","g1_18","g2_9","g1_20","g2_23","g1_25","g1_15","g1_14","g1_13","g2_28","g2_7","g3_35","g1_35","g3_4","g1_27","g1_7","g1_6","g2_29","g2_34","g1_26","g1_5","g2_5","g3_26","g1_38","g1_6","g2_6","g1_6","g1_9","g1_31","g1_7","g1_28","g1_3","g1_6","g1_28","g1_24","g1_33","g2_35","g1_36","g1_7","g1_39","g2_29","g1_5","g3_19","g1_2","g2_4","g1_27","g1_33"],"to":["g3_8","g3_6","g3_5","g3_5","g3_40","g3_40","g3_40","g3_4","g3_4","g3_4","g3_4","g3_4","g3_4","g3_39","g3_39","g3_39","g3_39","g3_39","g3_38","g3_38","g3_38","g3_38","g3_38","g3_37","g3_37","g3_37","g3_37","g3_36","g3_36","g3_36","g3_35","g3_35","g3_35","g3_35","g3_35","g3_35","g3_34","g3_34","g3_34","g3_34","g3_34","g3_34","g3_33","g3_33","g3_33","g3_33","g3_33","g3_33","g3_33","g3_33","g3_33","g3_32","g3_32","g3_32","g3_32","g3_32","g3_32","g3_31","g3_31","g3_31","g3_31","g3_31","g3_31","g3_31","g3_31","g3_31","g3_30","g3_30","g3_30","g3_30","g3_30","g3_30","g3_30","g3_30","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_3","g3_29","g3_29","g3_29","g3_29","g3_29","g3_29","g3_29","g3_29","g3_29","g3_29","g3_29","g3_28","g3_28","g3_28","g3_28","g3_28","g3_28","g3_28","g3_28","g3_28","g3_28","g3_28","g3_28","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_27","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_26","g3_36","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_25","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_24","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_23","g3_22","g3_22","g3_22","g3_23","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_22","g3_32","g3_21","g3_21","g3_31","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_21","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_20","g3_35","g3_20","g3_20","g3_20","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_2","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_19","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_18","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_17","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_19","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_16","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_15","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_14","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_13","g3_16","g3_13","g3_13","g3_13","g3_13","g3_13","g3_12","g3_13","g3_12","g3_12","g3_12","g3_12","g3_20","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_12","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_20","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_11","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g3_10","g2_4","g2_23","g3_10","g3_10","g3_1","g3_1","g3_1","g3_1","g3_1","g1_2","g3_1","g3_1","g3_1","g3_1","g3_1","g3_1","g3_34","g3_1","g3_20","g2_39","g3_1","g3_1","g3_14","g1_6","g1_13","g2_8","g3_36","g3_17","g2_7","g2_25","g2_3","g2_6","g2_20","g2_19","g2_30","g3_3","g1_22","g3_29","g2_5","g2_5","g3_12","g3_32","g1_21","g2_4","g2_4","g3_16","g1_12","g2_39","g2_39","g1_28","g2_23","g2_38","g1_15","g2_38","g3_19","g1_17","g2_38","g2_38","g2_19","g2_38","g2_38","g2_29","g2_19","g3_1","g2_24","g2_10","g2_37","g2_37","g3_1","g2_14","g2_16","g3_38","g2_35","g1_23","g1_33","g2_36","g2_36","g2_36","g2_37","g2_36","g1_25","g2_10","g1_11","g2_35","g3_18","g2_35","g2_16","g2_35","g3_21","g1_30","g2_34","g2_34","g2_34","g2_34","g2_34","g2_34","g2_33","g2_33","g2_33","g1_32","g1_28","g1_30","g1_29","g1_10","g2_32","g2_32","g2_32","g3_20","g2_32","g2_32","g2_32","g1_13","g2_31","g3_11","g2_31","g2_31","g2_31","g2_31","g3_16","g3_16","g1_1","g2_16","g2_36","g1_17","g2_30","g1_13","g2_30","g2_30","g2_30","g2_26","g2_30","g2_30","g2_1","g2_30","g3_1","g3_30","g3_21","g1_38","g3_7","g3_15","g3_1","g3_14","g2_24","g2_16","g2_3","g3_24","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g2_3","g3_14","g1_40","g3_10","g2_12","g3_38","g1_22","g2_29","g2_29","g2_29","g2_29","g2_29","g2_29","g1_25","g1_28","g2_28","g2_28","g2_28","g2_28","g2_11","g2_28","g2_28","g2_14","g3_40","g1_15","g2_3","g3_24","g2_14","g2_27","g2_20","g2_35","g2_27","g2_27","g2_27","g2_27","g2_27","g3_22","g2_27","g3_32","g1_10","g1_14","g1_23","g2_27","g1_26","g1_19","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g2_26","g3_10","g1_26","g2_2","g1_11","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g2_25","g3_1","g3_34","g3_30","g2_24","g2_24","g2_24","g2_24","g1_14","g2_24","g2_24","g2_24","g1_2","g2_24","g1_21","g3_26","g2_13","g3_25","g2_23","g2_17","g2_20","g2_23","g2_23","g1_2","g2_23","g2_23","g2_23","g2_23","g2_23","g3_29","g2_27","g1_31","g1_23","g2_21","g3_37","g2_22","g2_22","g3_25","g2_22","g2_22","g2_22","g2_22","g2_22","g2_22","g1_12","g2_22","g2_22","g2_22","g3_27","g2_22","g2_22","g2_22","g2_28","g2_16","g2_33","g3_19","g1_20","g3_1","g2_21","g1_22","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g2_21","g3_15","g2_4","g3_25","g2_20","g2_2","g2_20","g2_26","g2_20","g2_20","g2_20","g2_20","g2_18","g2_20","g2_2","g2_16","g2_20","g2_20","g3_10","g2_20","g2_15","g2_20","g3_13","g1_26","g3_12","g2_26","g2_28","g2_35","g2_24","g2_23","g1_29","g2_36","g3_18","g3_17","g2_2","g2_2","g2_21","g2_2","g2_2","g2_2","g2_2","g1_19","g1_36","g3_15","g2_19","g1_32","g1_25","g3_11","g2_19","g2_19","g2_19","g2_19","g2_19","g2_19","g2_24","g3_19","g2_24","g2_19","g2_19","g2_19","g1_14","g2_19","g2_19","g3_22","g3_29","g1_20","g2_22","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g2_18","g1_3","g2_18","g2_29","g2_18","g2_35","g2_18","g2_18","g3_35","g2_17","g2_12","g2_14","g2_26","g2_17","g3_12","g2_23","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g2_17","g1_13","g2_17","g2_17","g2_17","g1_1","g2_37","g1_14","g1_30","g1_16","g1_23","g2_18","g2_16","g2_16","g2_34","g1_18","g2_16","g2_16","g2_16","g2_7","g2_16","g2_16","g2_16","g2_16","g2_16","g1_19","g2_16","g2_16","g2_16","g2_16","g1_18","g2_3","g2_16","g2_16","g3_36","g2_21","g2_1","g2_18","g3_14","g2_2","g3_1","g2_15","g2_15","g2_28","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_18","g2_15","g2_14","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_15","g2_25","g2_15","g3_21","g2_15","g2_15","g2_29","g3_33","g2_27","g1_14","g2_14","g1_28","g2_14","g2_28","g2_18","g3_25","g2_14","g2_14","g2_14","g2_14","g2_14","g2_23","g3_32","g2_14","g2_14","g2_14","g3_36","g3_14","g3_12","g2_14","g3_34","g2_29","g2_36","g3_10","g3_11","g1_20","g2_20","g2_17","g2_21","g2_13","g2_19","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g2_13","g3_12","g2_13","g2_13","g2_13","g2_13","g2_10","g2_14","g2_13","g2_13","g3_29","g2_1","g2_21","g3_11","g1_13","g2_12","g2_12","g1_22","g2_21","g2_12","g2_12","g1_15","g2_12","g2_12","g2_12","g2_12","g2_12","g2_33","g2_21","g2_12","g2_12","g2_12","g2_12","g3_10","g2_12","g2_12","g2_12","g2_15","g3_19","g2_12","g3_1","g2_12","g3_10","g1_11","g3_35","g2_14","g2_11","g2_11","g2_31","g2_11","g2_11","g1_29","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_11","g2_25","g2_39","g1_38","g1_12","g2_23","g3_2","g2_10","g2_10","g2_10","g2_10","g2_10","g2_10","g3_16","g1_23","g2_10","g1_10","g2_10","g2_10","g3_14","g2_10","g2_10","g2_10","g2_10","g1_2","g2_10","g2_10","g2_10","g2_10","g2_2","g2_10","g1_1","g2_10","g2_11","g1_2","g2_2","g3_5","g2_31","g2_31","g2_1","g3_28","g2_1","g2_1","g2_35","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g2_14","g2_1","g2_1","g2_1","g2_1","g2_1","g2_1","g3_10","g3_28","g2_20","g3_20","g3_19","g3_14","g2_23","g1_12","g3_12","g2_11","g1_16","g3_34","g1_31","g2_2","g2_26","g2_13","g3_22","g2_11","g2_1","g2_17","g2_11","g2_18","g2_18","g1_39","g2_30","g2_17","g1_2","g2_33","g2_31","g2_17","g2_16","g2_24","g3_20","g1_11","g1_4","g1_1","g2_3","g2_25","g1_15","g3_26","g2_32","g3_24","g1_16","g2_28","g2_12","g2_26","g1_1","g2_14","g2_32","g2_11","g1_20","g1_7","g2_15","g3_1","g1_17","g3_28","g1_39","g1_11","g1_18","g2_16","g1_14","g3_1","g2_16","g1_28","g1_12","g1_6","g1_6","g2_38","g2_33","g3_19","g2_19","g3_21","g1_2","g3_26","g2_27","g2_5","g1_36","g2_1","g2_20","g3_13","g1_5","g2_13","g1_5","g3_36","g2_24","g1_10","g1_2","g2_13","g1_15","g2_16","g2_28","g2_22","g3_27","g1_19","g1_15","g2_10","g3_10","g1_32","g1_12","g1_33","g1_40","g1_21","g1_27","g3_10","g1_21","g1_40","g3_36","g1_17","g2_32","g3_27","g2_11","g1_24","g2_26","g1_20","g1_4","g2_3","g1_4","g1_4","g2_40","g3_25","g3_23","g3_17","g3_11","g2_21","g2_10","g3_13","g1_39","g1_39","g3_30","g1_39","g1_25","g1_32","g2_21","g3_26","g3_25","g1_12","g2_15","g3_32","g2_24","g1_35","g2_1","g1_11","g3_2","g3_1","g3_37","g2_29","g2_3","g2_3","g2_31","g1_38","g1_38","g2_23","g1_38","g1_38","g2_14","g1_1","g2_23","g2_13","g2_29","g2_22","g1_16","g3_15","g1_11","g3_23","g3_23","g1_40","g3_11","g1_24","g2_23","g2_40","g1_7","g1_17","g1_14","g3_17","g1_37","g2_12","g1_37","g3_2","g2_14","g3_18","g1_2","g1_31","g2_18","g1_32","g1_23","g1_26","g1_25","g1_4","g3_25","g1_10","g2_1","g3_14","g1_36","g3_25","g1_19","g3_14","g1_36","g1_36","g1_28","g1_1","g1_36","g1_36","g2_30","g2_18","g2_15","g3_30","g2_17","g1_12","g2_11","g2_17","g1_32","g3_21","g1_38","g1_14","g3_31","g1_18","g1_10","g2_33","g2_11","g2_23","g3_19","g1_33","g3_25","g3_16","g1_17","g1_15","g3_1","g2_18","g2_31","g2_22","g1_21","g3_16","g1_20","g1_27","g1_33","g3_28","g3_12","g3_10","g2_22","g2_34","g1_34","g1_18","g1_34","g1_34","g1_19","g1_37","g1_24","g1_34","g1_34","g1_20","g1_26","g1_26","g2_21","g3_31","g3_33","g2_30","g2_15","g1_14","g1_29","g3_15","g1_17","g1_33","g1_33","g2_12","g3_37","g1_11","g1_21","g3_15","g1_32","g3_27","g1_19","g2_25","g1_17","g1_13","g2_10","g3_22","g1_2","g1_38","g1_33","g2_1","g1_28","g1_32","g1_32","g2_33","g2_12","g1_12","g1_18","g3_1","g2_13","g1_18","g1_27","g1_28","g3_11","g1_17","g1_11","g1_18","g1_29","g2_2","g3_10","g1_20","g2_17","g2_26","g3_40","g2_32","g1_13","g2_18","g1_1","g3_17","g1_1","g1_16","g1_11","g2_12","g1_31","g3_1","g1_31","g1_31","g1_31","g2_24","g1_31","g2_29","g2_12","g2_34","g1_33","g1_27","g3_23","g3_15","g1_20","g3_12","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g1_30","g2_33","g1_10","g1_30","g3_13","g2_13","g2_4","g2_11","g3_10","g3_1","g2_14","g1_31","g2_13","g2_2","g1_1","g3_3","g3_10","g2_11","g3_21","g2_12","g1_12","g1_18","g1_3","g1_16","g1_3","g2_10","g3_15","g1_3","g1_3","g2_23","g1_3","g2_32","g1_16","g1_3","g1_3","g1_3","g1_3","g1_26","g2_2","g1_13","g2_19","g1_27","g1_3","g3_23","g3_24","g2_17","g1_18","g1_31","g1_20","g1_18","g1_28","g1_10","g2_21","g2_10","g1_19","g1_12","g1_19","g1_1","g3_10","g1_16","g2_12","g3_30","g1_29","g1_29","g1_29","g2_25","g2_11","g1_18","g1_29","g1_19","g1_29","g1_21","g1_19","g1_29","g2_14","g1_14","g1_29","g1_13","g1_2","g1_29","g1_26","g1_32","g1_1","g1_10","g2_40","g2_19","g3_1","g1_18","g2_15","g2_10","g1_18","g2_25","g3_1","g2_36","g2_18","g2_14","g1_1","g2_34","g2_37","g3_1","g2_2","g1_34","g3_18","g2_18","g2_13","g2_17","g1_21","g1_28","g2_25","g1_22","g1_28","g1_28","g2_14","g3_34","g1_28","g3_20","g1_28","g1_22","g1_14","g3_22","g1_28","g3_2","g2_27","g3_17","g1_13","g1_23","g3_31","g2_19","g1_15","g2_38","g1_25","g2_30","g1_10","g2_2","g3_22","g1_10","g3_10","g2_24","g1_12","g1_16","g1_34","g1_1","g1_23","g1_12","g1_28","g2_2","g1_16","g3_20","g1_3","g1_32","g1_24","g1_25","g1_27","g2_14","g1_27","g1_27","g2_22","g1_29","g1_27","g2_1","g1_27","g2_30","g1_27","g1_27","g1_27","g2_24","g1_27","g1_27","g3_12","g1_27","g3_7","g2_13","g1_32","g2_24","g3_22","g3_11","g3_1","g2_18","g3_11","g1_11","g1_17","g3_12","g1_24","g1_15","g2_27","g2_25","g2_39","g1_30","g3_19","g1_30","g1_3","g1_22","g1_26","g1_26","g1_26","g1_26","g1_15","g1_26","g2_4","g3_20","g3_1","g1_15","g3_20","g3_21","g1_14","g2_22","g2_32","g2_21","g3_13","g2_39","g2_28","g1_17","g2_21","g1_22","g2_2","g3_17","g1_16","g1_2","g1_26","g1_25","g1_26","g2_18","g1_25","g1_25","g3_3","g1_31","g1_25","g1_25","g3_1","g1_25","g1_25","g1_25","g3_16","g1_25","g1_25","g1_25","g1_10","g1_15","g3_1","g3_29","g3_23","g1_26","g1_19","g1_1","g2_13","g2_6","g1_35","g2_13","g3_1","g1_16","g2_12","g1_3","g2_21","g3_15","g2_15","g1_12","g3_31","g3_38","g1_11","g3_19","g1_24","g3_30","g1_24","g1_24","g2_19","g1_24","g1_22","g3_17","g1_24","g1_24","g1_5","g1_24","g1_31","g1_24","g3_3","g1_23","g1_15","g1_24","g1_24","g1_24","g1_1","g1_11","g3_21","g1_20","g2_33","g2_23","g2_16","g1_36","g3_29","g1_16","g1_11","g1_2","g3_11","g1_29","g1_21","g1_28","g3_18","g2_27","g1_20","g2_14","g1_37","g1_23","g1_23","g1_23","g1_23","g1_23","g1_21","g1_23","g3_35","g2_16","g3_14","g1_23","g3_25","g1_15","g2_28","g1_14","g3_14","g1_16","g3_10","g1_20","g2_20","g1_21","g1_24","g3_10","g1_17","g2_5","g2_13","g1_23","g1_13","g1_24","g2_35","g2_12","g3_11","g3_30","g1_1","g1_22","g3_18","g1_22","g1_37","g1_22","g1_11","g1_22","g1_14","g1_22","g3_3","g1_22","g1_16","g1_14","g3_14","g1_4","g1_34","g1_35","g1_18","g1_13","g1_22","g3_22","g1_21","g3_36","g3_24","g2_14","g1_31","g1_25","g1_15","g1_1","g1_12","g1_24","g2_2","g1_13","g1_10","g1_21","g1_21","g1_28","g3_15","g1_21","g2_11","g1_17","g1_21","g1_21","g1_12","g1_14","g3_17","g1_12","g3_12","g2_15","g3_12","g3_10","g3_23","g1_22","g2_27","g1_32","g3_16","g1_24","g2_37","g1_19","g3_16","g3_26","g2_22","g1_13","g2_16","g3_22","g1_17","g2_22","g2_1","g3_11","g1_17","g2_1","g1_20","g1_20","g1_12","g1_20","g1_10","g2_12","g1_30","g1_20","g1_20","g1_10","g1_20","g1_20","g1_14","g1_20","g1_12","g1_15","g3_39","g3_23","g3_17","g3_12","g1_16","g1_25","g1_11","g2_17","g1_15","g2_16","g1_17","g2_12","g3_2","g1_11","g3_10","g1_14","g1_10","g1_26","g1_1","g1_2","g1_2","g2_16","g1_34","g1_2","g1_1","g1_2","g1_29","g1_28","g3_15","g1_2","g1_2","g1_35","g1_2","g1_22","g1_13","g2_23","g2_20","g2_26","g2_15","g2_12","g1_13","g2_10","g1_17","g3_39","g1_2","g1_20","g2_19","g1_22","g2_20","g1_20","g2_36","g1_1","g1_37","g3_19","g1_25","g3_22","g1_19","g1_19","g1_19","g1_26","g1_19","g3_26","g1_19","g1_35","g1_19","g1_19","g1_19","g2_31","g2_11","g2_1","g1_19","g1_12","g1_18","g1_29","g1_34","g3_22","g1_23","g1_15","g2_23","g3_20","g2_29","g1_1","g3_28","g1_18","g3_29","g1_19","g1_2","g1_10","g1_1","g2_29","g1_21","g3_10","g1_18","g1_18","g1_33","g2_33","g2_2","g1_27","g2_25","g1_14","g2_40","g2_28","g3_13","g3_37","g3_30","g1_15","g3_28","g1_11","g3_2","g3_24","g3_14","g1_26","g1_15","g1_18","g1_16","g2_29","g1_37","g1_17","g1_17","g2_31","g1_17","g2_34","g2_2","g3_28","g1_17","g1_17","g1_17","g1_17","g3_23","g1_17","g1_17","g2_25","g1_17","g2_27","g1_17","g1_17","g2_19","g2_26","g3_32","g2_19","g2_20","g1_19","g2_28","g2_1","g3_2","g2_30","g1_12","g3_22","g1_23","g1_21","g3_1","g1_18","g1_12","g3_13","g1_14","g3_3","g1_18","g1_12","g3_18","g2_2","g1_12","g1_36","g3_14","g1_22","g1_11","g1_24","g2_12","g3_3","g1_16","g1_16","g1_13","g1_16","g1_16","g2_28","g1_16","g2_18","g3_32","g1_16","g2_13","g1_12","g1_16","g2_29","g1_16","g1_16","g1_10","g2_16","g1_16","g2_24","g1_13","g2_11","g1_12","g1_32","g1_18","g2_10","g1_16","g1_16","g2_10","g3_13","g1_20","g1_19","g3_12","g1_26","g1_2","g2_27","g1_18","g1_2","g1_14","g1_10","g2_37","g1_3","g2_21","g3_18","g2_14","g1_17","g1_1","g2_18","g1_18","g2_23","g1_14","g3_24","g1_15","g1_20","g1_15","g1_20","g1_15","g1_15","g1_15","g2_26","g1_13","g1_37","g2_39","g1_10","g1_23","g2_12","g2_22","g2_2","g2_19","g3_22","g1_23","g2_31","g2_35","g1_10","g1_2","g3_18","g3_16","g1_10","g1_39","g1_10","g3_24","g3_31","g1_13","g2_1","g2_13","g2_19","g3_22","g2_20","g2_30","g2_10","g1_27","g1_20","g1_16","g1_29","g2_28","g2_19","g1_11","g1_18","g2_20","g1_19","g2_17","g2_36","g1_35","g1_14","g1_15","g1_14","g1_14","g1_19","g2_17","g1_21","g1_27","g1_27","g2_10","g1_14","g1_14","g2_37","g3_10","g2_29","g1_13","g2_28","g2_14","g1_35","g1_11","g1_33","g1_3","g1_1","g1_26","g1_23","g1_5","g1_10","g2_13","g3_15","g2_2","g1_22","g1_31","g3_33","g1_2","g3_25","g2_26","g1_18","g1_35","g1_11","g1_11","g3_16","g2_24","g1_14","g1_13","g3_26","g1_13","g1_13","g1_13","g2_3","g1_13","g2_14","g1_13","g1_14","g3_10","g3_15","g1_14","g1_13","g1_21","g1_13","g2_6","g1_12","g1_13","g3_2","g1_13","g1_33","g1_10","g2_32","g1_35","g1_22","g2_20","g1_11","g1_10","g2_20","g1_11","g3_32","g1_15","g3_18","g2_10","g1_1","g1_13","g3_12","g2_2","g1_34","g1_1","g1_15","g1_12","g3_14","g1_22","g2_13","g1_1","g2_1","g2_18","g1_15","g1_11","g2_34","g2_21","g2_14","g2_15","g1_36","g1_24","g2_30","g1_21","g1_18","g1_1","g1_12","g2_37","g1_33","g1_12","g3_15","g1_1","g1_13","g1_12","g3_18","g1_13","g1_10","g1_31","g1_2","g2_40","g1_10","g2_1","g1_14","g1_10","g2_31","g1_14","g2_14","g3_26","g3_37","g1_30","g2_27","g1_15","g2_1","g1_12","g2_21","g3_11","g2_2","g2_27","g1_11","g1_18","g2_15","g2_1","g2_10","g3_24","g3_14","g3_6","g3_20","g1_15","g1_15","g1_10","g2_10","g1_8","g3_13","g1_12","g1_21","g3_34","g1_22","g2_20","g3_10","g3_6","g1_17","g1_21","g3_13","g1_12","g1_11","g3_1","g1_35","g2_22","g1_21","g2_13","g1_11","g2_12","g1_11","g1_1","g1_10","g1_11","g1_1","g1_11","g1_11","g3_5","g2_13","g1_39","g2_1","g3_35","g1_12","g2_13","g2_1","g3_17","g3_11","g3_20","g2_3","g1_18","g1_13","g1_22","g3_15","g2_24","g2_13","g1_1","g1_10","g1_23","g3_20","g2_25","g1_14","g1_24","g3_33","g1_33","g2_32","g1_10","g1_11","g2_33","g1_1","g2_10","g1_10","g1_14","g1_10","g1_10","g2_11","g2_19","g3_14","g1_1","g3_21","g1_25","g1_11","g1_3","g2_27","g2_17","g1_19","g1_10","g2_35","g3_12","g1_34","g1_11","g2_10","g1_37","g1_40","g1_21","g1_35","g1_16","g1_19","g1_1","g1_15","g1_2","g1_1","g2_25","g1_1","g1_1","g1_16","g2_19","g1_23","g3_17","g1_11","g2_20","g1_12","g1_10"]},"nodes":{"id":["g1_1","g1_10","g1_11","g1_12","g1_13","g1_14","g1_15","g1_16","g1_17","g1_18","g1_19","g1_2","g1_20","g1_21","g1_22","g1_23","g1_24","g1_25","g1_26","g1_27","g1_28","g1_29","g1_3","g1_30","g1_31","g1_32","g1_33","g1_34","g1_35","g1_36","g1_37","g1_38","g1_39","g1_4","g1_40","g1_5","g1_6","g1_7","g1_8","g1_9","g2_1","g2_10","g2_11","g2_12","g2_13","g2_14","g2_15","g2_16","g2_17","g2_18","g2_19","g2_2","g2_20","g2_21","g2_22","g2_23","g2_24","g2_25","g2_26","g2_27","g2_28","g2_29","g2_3","g2_30","g2_31","g2_32","g2_33","g2_34","g2_35","g2_36","g2_37","g2_38","g2_39","g2_4","g2_40","g2_5","g2_6","g2_7","g2_8","g2_9","g3_1","g3_10","g3_11","g3_12","g3_13","g3_14","g3_15","g3_16","g3_17","g3_18","g3_19","g3_2","g3_20","g3_21","g3_22","g3_23","g3_24","g3_25","g3_26","g3_27","g3_28","g3_29","g3_3","g3_30","g3_31","g3_32","g3_33","g3_34","g3_35","g3_36","g3_37","g3_38","g3_39","g3_4","g3_40","g3_5","g3_6","g3_7","g3_8","g3_9"],"avg_prop_connection":[1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.955121951219512,0.492489451476793,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.96991452991453,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.49620253164557,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675,0.995213675213675]}},"type":"list","container":"div","options":{"color_col":"avg_prop_connection","shape_col":"type"},"script":"var d3Script = function(d3, r2d3, data, div, width, height, options, theme, console) {\nthis.d3 = d3;\n\ndiv = d3.select(div.node());\n/* R2D3 Source File:  /Library/Frameworks/R.framework/Versions/3.6/Resources/library/sbmR/d3/network_viz.js */\n// !preview r2d3 data=sim_basic_block_network(3, 20), options = list(color_col = 'block', shape_col = 'type'), container = 'div'\n\ndiv.html('')\n  .style('width', `${width}px`)\n  .style('height', `${height}px`)\n  .style('position', 'relative');\n\n// Append the canvas\nconst canvas = div.append('canvas')\n  .style('position', 'absolute')\n  .style('bottom', 0)\n  .style('width', `${width}px`)\n  .style('height', `${height}px`)\n  .attr('width', width*2)\n  .attr('height', height*2);\n\nconst context = canvas.node().getContext('2d');\ncontext.scale(2,2); // Makes things bigger so it looks good on retina\n\n// Append the svg and padded g element\nconst svg = div.append('svg')\n  .html('') // wipe svg content if need be\n  .style('position', 'absolute')\n  .style('bottom', 0)\n  .style('width', `${width}px`)\n  .style('height', `${height}px`)\n  .attr('width', width)\n  .attr('height', height)\n  .attr(\"viewBox\", [0, 0, width, height]);\n\n// Get color and shape column names from options\nconst {color_col, shape_col} = options;\n\n// Clean up data into the node and link format that d3 needs\nconst links = HTMLWidgets.dataframeToD3(data.edges)\n  .map(function(edge){return({source: edge.from, target: edge.to})});\nconst nodes = HTMLWidgets.dataframeToD3(data.nodes);\n\n\n// If we're missing values for our aesthetic mapping columns,  fill them in with constant values.\nif(!nodes[0][color_col]){\n  nodes.forEach(function(node){node[color_col] = color_col});\n}\nif(!nodes[0][shape_col]){\n  nodes.forEach(function(node){node[shape_col] = shape_col});\n}\n\n// Try and detect if color column is a numerical continuous value\nconst unique_color_vals = unique(nodes.map(d => d[color_col]));\nconst color_is_continuous = (unique_color_vals.length > 10) && converts_to_numeric(unique_color_vals[0]);\n\n// Color encodes the node's block\nconst Color = color_is_continuous\n  ? d3.scaleLinear().range([\"white\", \"steelblue\"]).domain(d3.extent(unique_color_vals))\n  : d3.scaleOrdinal().range(d3.schemeCategory10).domain(unique_color_vals);\n\nconst color_node = node => {\n  const color_val = node[color_col];\n  return Color(color_is_continuous ? +color_val : color_val);\n};\n\n// Shape encodes the node's type\nconst Shape = d3.scaleOrdinal()\n  .range(d3.symbols)\n  .domain(unique(nodes.map(d => d[shape_col])));\nconst draw_shape = node => d3.symbol().size(150)\n  .type(Shape(node[shape_col]))();\n\n\nconst padding = 15;\nconst X = d3.scaleLinear()\n  .range([padding, width-padding]);\n\nconst Y = d3.scaleLinear()\n  .range([padding, height-padding]);\n\n// Setup the simulation\nconst simulation = d3.forceSimulation(nodes)\n      .force(\"link\", d3.forceLink(links).id(d => d.id))\n      .force(\"charge\", d3.forceManyBody())\n      .force(\"center\", d3.forceCenter(width / 2, height / 2));\n\nlet not_being_dragged = true;\n\n// Setup the svg node components\nconst node = svg.append(\"g\")\n  .attr(\"stroke\", \"#fff\")\n  .selectAll(\"path.node\")\n  .data(nodes)\n  .enter().append('path')\n  .classed('node', true)\n  .attr('fill', color_node)\n  .attr('d', draw_shape)\n  .call(drag(simulation));\n\n// Canvas constants\n// Set color of edges\ncontext.strokeStyle = 'black';\n\nconst lowest_opacity = 0.05;\n// Scale edge opacity based upon how many edges we have\ncontext.globalAlpha = Math.max(d3.scaleLinear()\n                                 .domain([0,10000])\n                                 .range([0.3, lowest_opacity])(links.length), lowest_opacity);\n\n\n// Kickoff simulation\nsimulation.on(\"tick\", () => {\n\n if(not_being_dragged){\n   X.domain(d3.extent(nodes.map(d => d.x)));\n   Y.domain(d3.extent(nodes.map(d => d.y)));\n }\n\n  // Clear canvas\n  context.clearRect(0, 0, +canvas.attr('width'), +canvas.attr('height'));\n\n  context.beginPath();\n  links.forEach(d => {\n    context.moveTo(X(d.source.x), Y(d.source.y));\n    context.lineTo(X(d.target.x), Y(d.target.y));\n  });\n\n  // Draw to canvas\n  context.stroke();\n\n  // Update node positions\n  node.attr('transform', d => `translate(${X(d.x)}, ${Y(d.y)})`);\n});\n\n\nfunction drag(simulation){\n  function dragstarted(d) {\n    if (!d3.event.active) simulation.alphaTarget(0.3).restart();\n    d.fx = d.x;\n    d.fy = d.y;\n    not_being_dragged = false;\n  }\n\n  function dragged(d) {\n    d.fx = d3.event.x;\n    d.fy = d3.event.y;\n  }\n\n  function dragended(d) {\n    if (!d3.event.active) simulation.alphaTarget(0);\n    d.fx = null;\n    d.fy = null;\n    not_being_dragged = true;\n  }\n\n  return d3.drag()\n      .on(\"start\", dragstarted)\n      .on(\"drag\", dragged)\n      .on(\"end\", dragended);\n}\n\nfunction converts_to_numeric(val){\n  return !isNaN(+val);\n}\n\nfunction unique (vals){\n  return [...new Set(vals)];\n}\n\n\n};","style":null,"version":5,"theme":{"default":{"background":"#FFFFFF","foreground":"#000000"},"runtime":null},"useShadow":true},"evals":[],"jsHooks":[]}</script>

]

---
# Future plans

.pull-left[
## Node-level uncertainty
Determine which values are structural outliers
]

.pull-right[
## Lots of visualizations
Visualization based inference for highly complex models
]

---

# The Appendix

## Thanks to
.pull-left[
- My advisor Yaomin Xu
- Lab Biostatistician Siwei Zheng
- Other lab members for thoughtful comments during entire process
- Vanderbilt Biostatistics Development Grant
- My Cat (and wife)
]
